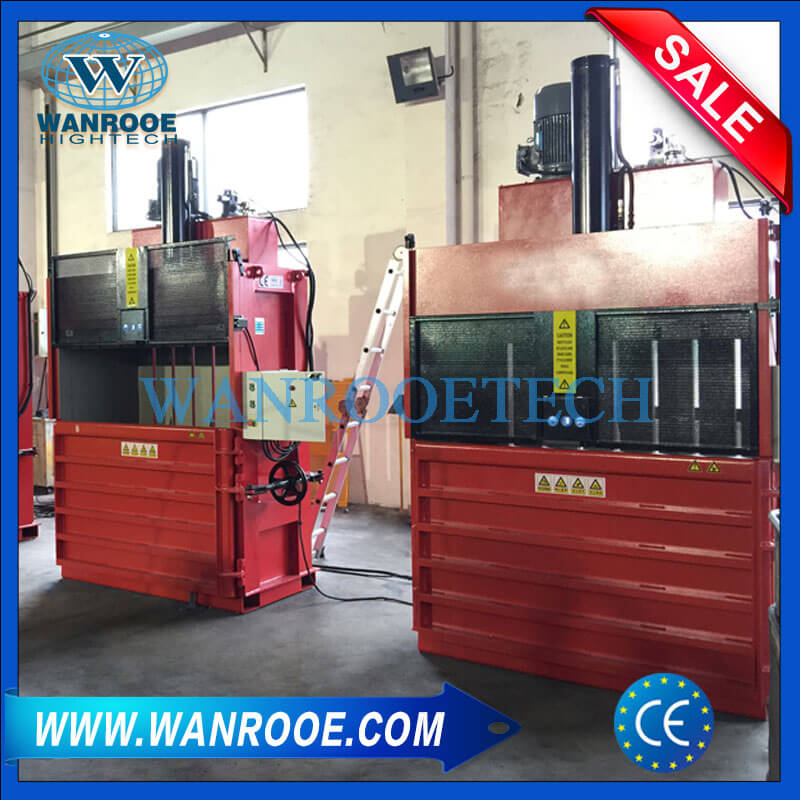

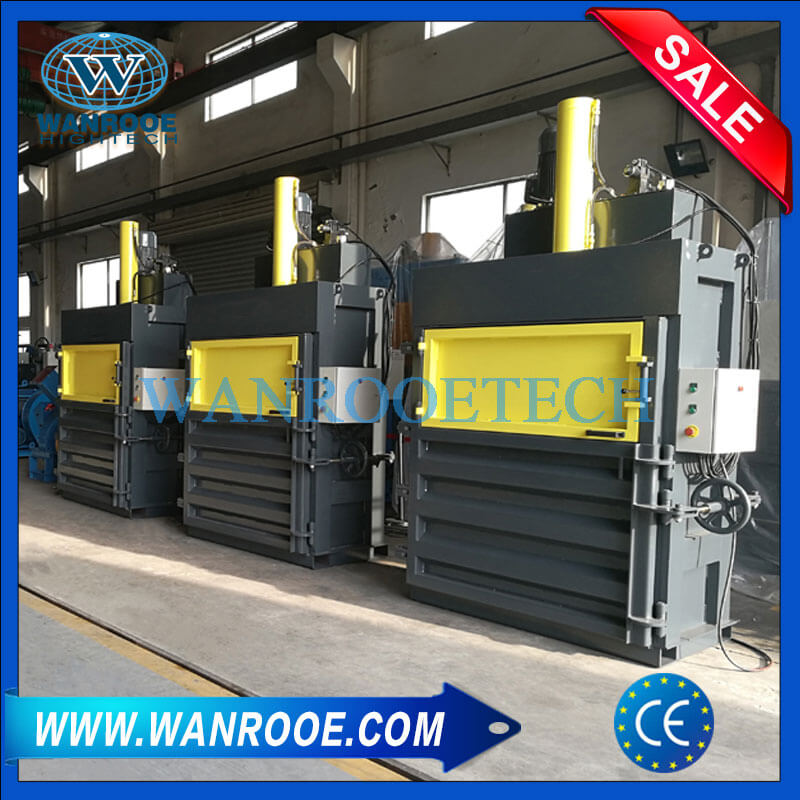

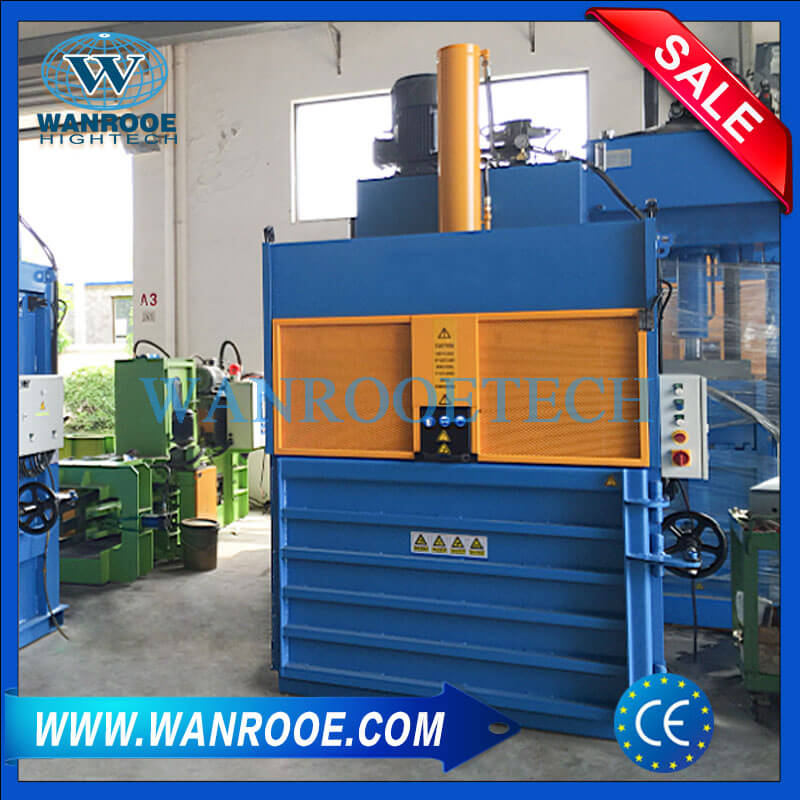

PET PP HDPE Bottle Hydraulic Baler Waste Plastic Baling Machine PET PP HDPE Bottle Hydraulic Baler Waste Plastic Baling Machine

Automatic chain bale ejector for quickly and easily ejecting the bales out form the machine
The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
Equipped with Euro and U.S. standard anti-rebound gate structure which makes sure the safety of operation
Special ram guides design makes the platen not slope because of uneven materials feeding during compression
Equipped with NOK seals that from Japan means longer lifespan of the seals

Quantity:
Share this:
  • Product Description
  • Parameter

Usage:

Specially used for recycling the cans, PET bottles, oil tank etc.


Features:

Automatic chain bale ejector for quickly and easily ejecting the bales out form the machine

The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation

Equipped with Euro and U.S. standard anti-rebound gate structure which makes sure the safety of operation

Special ram guides design makes the platen not slope because of uneven materials feeding during compression

Equipped with NOK seals that from Japan means longer lifespan of the seals

Equipped with A.M.C oil pipe joints that from Japan ensures the machine far away from oil leakage problems

Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pump

Plastic Baling Machine,PET Bottle Baler,Vertical Baler machine,Hydraulic Baler, Plastic Bottle Baler


Technical Specifications:

Model

PNDB-300KL8060

PNDB-400KL10060

PNDB-500KL11070

PNDB-800KL12080

Pressure

30tons

40 tons

50tons

80tons


Feeding Opening Size (L*H)

800*500mm

1000*500mm

1100*500mm

1200*500mm


Baling chamber Height

1500mm

1500mm

1500mm

1700mm


Bale Size (L*W*H, H is adjustable)

800*600*(200-1000)mm

1000*600*(300-1000)mm

1100*700*
(300-1000)mm

1200*800*(300-1200)mm

Bale Weight

30-120kgs

60-180kgs

90-270kgs

200-380kgs

Power

5.5kw

7.5kw

11kw

15kw

Weight

1400kgs

1700kgs

1900kgs

2500kgs

Overall Dimensions

1280*850*3300mm

1480*1000*3400mm

1600*1100*3500mm

1700*1200*3900mm


×
