Automatic Medical Waste Treatment System Medical Waste Disposal

Intelligent Autoclave Shredder Automatic Medical Waste Treatment System Description:
Intelligent autoclave shredder automatic medical waste treatment system is the relevant provisions of our company in strict accordance with the "medical waste high-temperature steam centralized treatment engineering standard (trial)", combined with the design experience of more than 100 high-temperature steam sterilization processing systems, and developed A high-end intelligent medical waste automatic processing system is suitable for a high-level medical waste disposal center. Intelligent autoclave shredder automatic medical waste treatment system enables automatic discharge, sterilization, crushing, orbital transport, cleaning, and palletizing of the system. Automatic control, no need to manually intervene, effectively reduce the number of operators, reduce labor intensity, and eliminate infections caused by direct contact with medical waste.

Intelligent Autoclave Shredder Automatic Medical Waste Treatment System Main Equipment:
Intelligent autoclave shredder automatic medical waste treatment system mainly includes medical waste sterilizer autoclave, medical manual handing system, medical waste shredding machine, turnover box washing machine.

1、Pulsating vacuum sterilization of medical waste Sterilization principle
protein denaturation, which will all kill all microorganisms, including bacterial spores. The device uses high-temperature steam sterilization of medical waste processing methods, namely heat sterilization. Saturated steam as the working medium, using its strong penetration deep into the sterilized items inside and release the latent heat of steam contained so that rapid warming sterilized objects remain for some time after reaching the sterilization temperature, bacteria coagulation.

Sterilization Procedure

Intelligent Autoclave Shredder Automatic Medical Waste Treatment System Technical Features:
1. Biological safety seal items, The sterilizer fully realizes complete shielding of the sterilization process sterilizing articles, sterilization exhaust steam generated in the process wastewater effectively inactivated.
2. Seal doors When environmental security needs, the use of compressed air to pass into the ring, can ensure the safety of the door seal. This prevents leakage in the box and out of the cabinet area. Seal the door when a power cut, such as failure, you can still remain sealed;
3. Quality and efficient import filters
4. Treatment of high-risk waste
5. Cavity structure
The top of the vacuum through the filter, the lower portion of the steam from the sterilizer to enter, the condensate is maintained at the top and bottom of the cavity bottom of the steam inlet, the entire sterilization process, condensed water heated by steam, to achieve sterilization temperature. Sterilization process, the steam is continuously withdrawn from the top through the filter, after the sterilization, the sterilized water is drained from the bottom of the condensate.

2、Handling systems include manual handling systems and automated handling systems

Manual handling system

Introduction: Manual handling system is laying track on the ground, the material transmitted through human. The system consists of a linear transport to rail, bridge and other turntable and out of the cabinet.

Automated handling systems:

Introduction: medical waste handling systems include automatic Crate automatic handling systems and sterilization car automatic handling systems. Crate automatic handling system includes automatic feeder, linear transfer unit (including chain conveyors and roller conveyors),90 °steering unit,180 ° flip units, etc. Sterilization car automatic handling systems including linear transfer unit (roller conveyor), 90 °steering unit, automatic cabinet unit, automatic cabinet unit, automatic unloading machine.

The system features

the ability to achieve automatic feeding of medical waste, discharge, sterilization car automatic transmission and IBC cleaning, without human intervention, which can effectively reduce the number of equipment operators, reduce labor intensity. Put an end to people in direct contact with medical waste caused by infection.

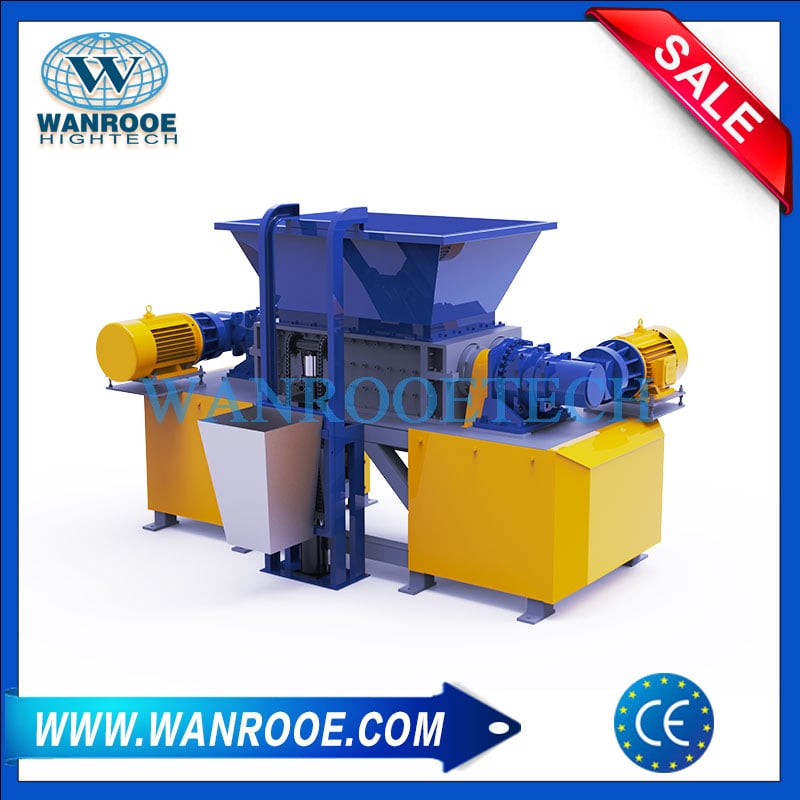

3、Medical waste shredder

Double shaft shredder extrusion-type structure, the use of two cutting blades for cutting works, minced cut waste. Mainly from the power system, frame, driveshafts, blades, hoppers and other components.

Features:
1. simple structure, each workpiece mounting compact, easy maintenance.
2. The control system can realize reversing arbor, protect the motor and blade, the safety factor increases.
3. Bearing cap has oil cup, easy bearing lubrication.
4. The oil level sight glass can be easily observed in the level of the gear oil level.
5. Blade is made of high alloy steel, fully machined, after repeated heat treatment and surface hardening treatment to ensure its reliable mechanical properties.
6. Sparse stiffened oriented materials, and prevent back after the break with the material.

4、Turnover box washing machine

Washing machine by the drive motors, conveyors, sprinkler system and automatic control system. Loading crates of medical waste is placed in the automatic cleaning system of the rod mesh belt conveyor chains, motor starters, Crate belt is fed first by rinsing station, high-pressure rinse, rinse after the end of Crate and was transported to disinfection station, through the pump Crate full disinfectant spray all places, for disinfection. After the disinfectant spray, Crate also transferred to the cleaning station by a link belt, by high-pressure water spray washing disinfectant on Crate washed with water, and then send it to the end of the washing machine, this time Crate can be removed from the net to bring the final finishing to prepare for the next use.
