Description£º

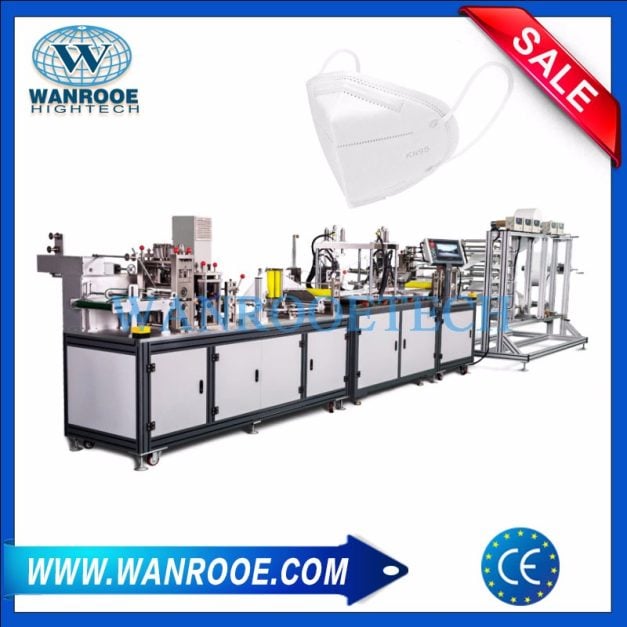

N95 Medical mask machine the servo and constant temperature control system adopted is controlled by PL program to make the material from compounding ¡ú forming ¡ú welding ¡ú punching ¡ú spot welding ear straps at one time, and the entire production process is fully automated. Mask machine product features The mask machine is a multi-layer non-woven fabric formed by hot-press folding, ultrasonic welding, scrap removal, ear strap bridge welding, and other processes to produce a variety of masks with fixed filtration performance. The production speed of its masks reaches 120 pieces/minute and above, and the pass rate is above 98%, which can more than double the production efficiency of similar products.
Basic configuration:
1. Supply of outer layer non-woven fabric, roll diameter¡Ü1000mm:
1) Mechanical tension material rack, tension spring control;
2) Automatic shutdown alarm when material is cut off.
2. Meltblown cloth supply, roll diameter ¡Ü1000mm:
1) Mechanical tension material rack, tension spring control;
2) Automatic shutdown alarm when the material is cut off and the joints are automatically rejected.
3. Inner layer non-woven fabric supply, roll diameter¡Ü1000mm:
1) Mechanical tension material rack, tension spring control;
2) Automatic shutdown alarm when material is cut off.
4. Nose bridge supply, roll diameter ¡Ü500mm:
1) Mechanical tension material rack, tension spring control;
2) Nose bridge feeding and cutting device, servo control;
