Waste PCB Recycling Machine


Why PCB Recycling Machine

Today, with rapid development of science and technology, more and more electronic waste which containing waste motherboard in a computer, old pcb printed circuit board, scrap circuit board will be eliminated. This waste circuit board contains a number of rare metals such as: copper, gold, silver, lead and tin, which non-metallic included epoxy resin, phenol resin, curing agent, glass fibers, they all have a high recycling value, high ROI. While how to effectively recycle the metal and non-metallic materials together? This is the reason why PCB recycling machine is very popular.

Waste PCB Recycling Machine, PCB Recycling Plant, PCB Recycling Machine, Printed Circuit Board Recycling Machine

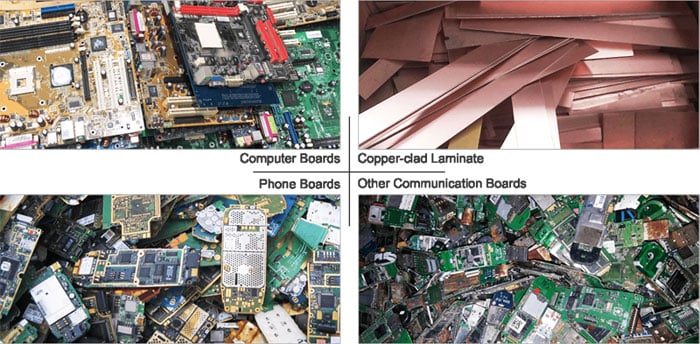

PCB Recycling Machine Raw Materials

Waste circuit boards, discarded circuit board, CCL ( copper clad laminate ), flexible circuit board, pcb etching, pcb circuit board, printed circuit board, computer motherboard, printed circuit board assembly, and other PCB comes from WEEE or electric waste

Waste PCB Recycling Machine, PCB Recycling Plant, PCB Recycling Machine, Printed Circuit Board Recycling Machine

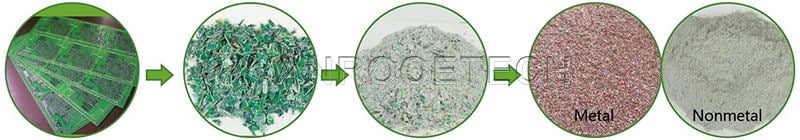

Finished product of PCB recycling Machines

Obtaining Copper metal particle, fiber and resin powder separately after PCB recycling Machine

Waste PCB Recycling Machine, PCB Recycling Plant, PCB Recycling Machine, Printed Circuit Board Recycling Machine

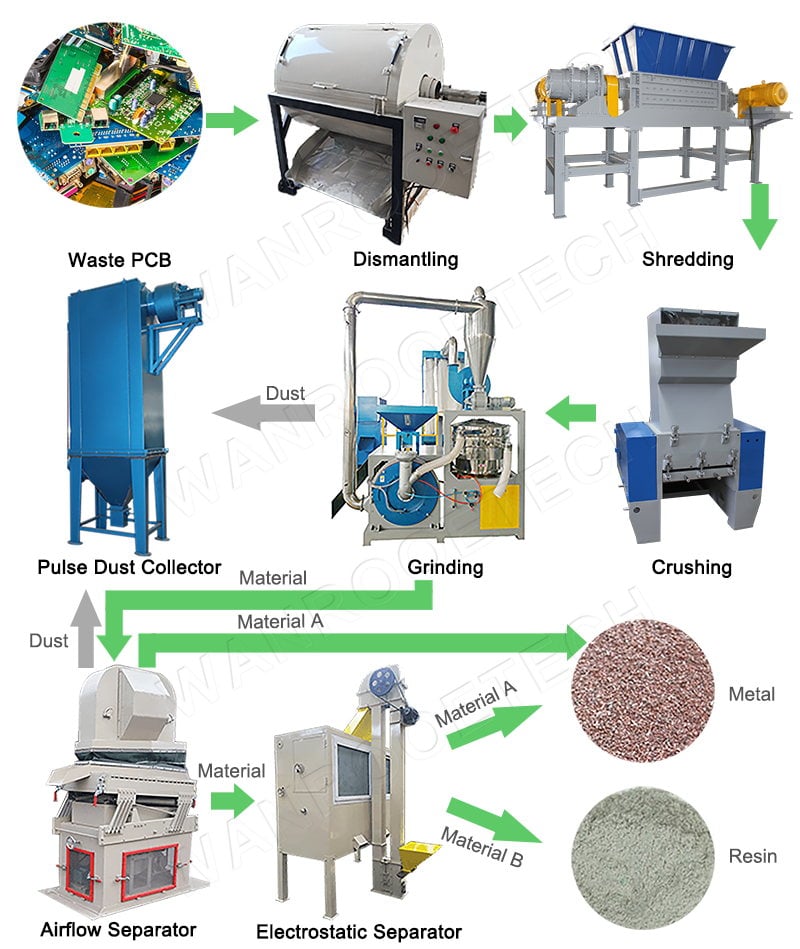

What's the Working Process of PCB Recycling Machine?


What's in PCB That Could be Recycled?

From the research for normal PCB boards, in which the percentages of the electronic components, base board and soldering tin are 58%, 37% and 5% separately. And for every one ton base boards, it include about 40% metal materials and 60% nonmetals, which contain almost all the common elements in periodic table. By estimate, for 1 ton computer circuit boards, it contains 0.5kg gold, 130kg copper, 10kg iron, 60kg Plumbum, 40kg tin, 36kg nickel, 40kg antimony and some other rare precious metals, like Platinum, palladium, etc.

Waste PCB Recycling Machine, PCB Recycling Plant, PCB Recycling Machine, Printed Circuit Board Recycling Machine



What Benefit You Can Get?

With the PLC control system, it could make the PCB recycling machine fully automatic with stable performance, easy to operate. And the PCB recycling machine is designed with integrated type compact structure which could save land occupy size and easy to install. Further with the on-the-spot installation, commissioning and operation training service, it would avoid your trouble on installation and operation. During PCB recycling process, PCB would be firstly shredded or crushed, then sieved by rotatory vibrating screen and separated through air separation and electrostatic separation, which could achieve the recovery rate to 99.9%.



How the Components on PCB Boards are Processed?

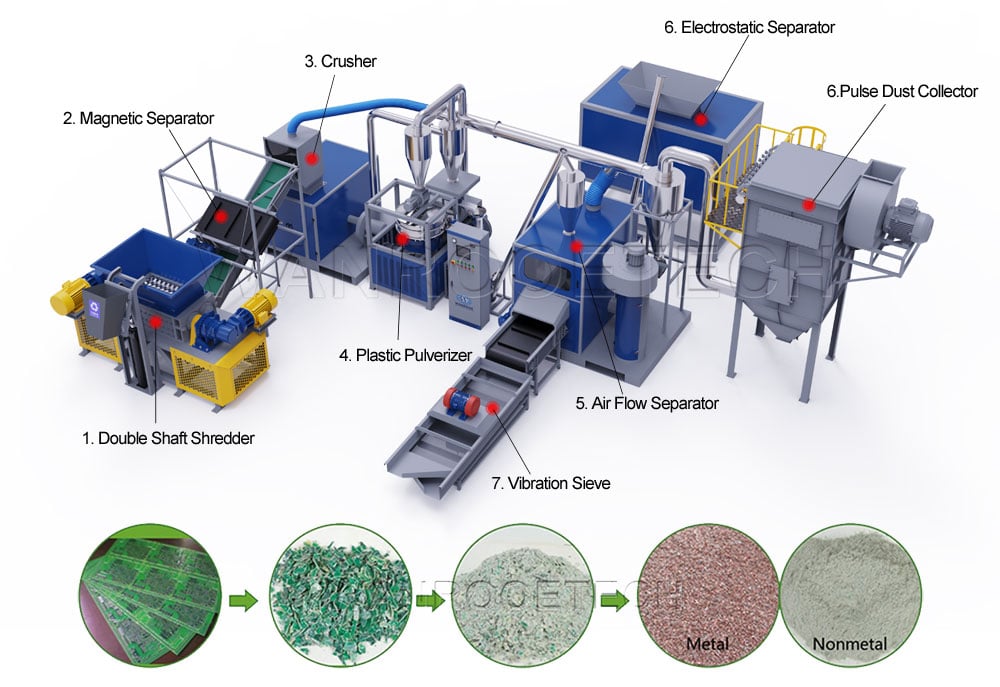

Components:

Waste PCB Recycling Machine, PCB Recycling Plant, PCB Recycling Machine, Printed Circuit Board Recycling Machine

Technical Features:
1. Suitable structure and layout, stable performance and recycling water is used to control temperature and reduce noise in the grinder;
2. PLC system makes it easier to control the whole line, the negative pressure feeding system prevent the dust from running out;
3. Feedback system makes the grind much more effective;
4. The separation rate of air separator can reach 97% and the separation rate of pulse dust cleaning device can reach 99%;
5. Electrostatic separator makes higher and quicker separation, moreover gets more non-ferrous metal;
6. With the magnetic separator, the iron can be separated from other metals.


In order to better provide you with a professional answer, when sending an inquiry, please describe your parameters or technical requirements (such as processing materials, output size, capacity, etc.), we will reply to you as soon as possible!
