HDPE Pipe Plastic Purges Shredder Crusher Machine Two in One

? Space-saving and investment-minimized, compared to the individual shredder, granulator and conveyor. ? One-step size reduction to desired final output size. ? Slanted pusher ram ensures continuous operation & eliminates residual materials. ? Auto-reverse system re-orients shredder rotor¡¯s direction when motor overload and material jam. ? Shredder rotor knife adopts DC53 and crusher knife adopts Cr12MoV. ? Shredder and crusher are individually driven for better control. ? Main electrical components are trusted brands such as Siemens and Schneider.

Features

Model	PNDS-600C	PNDS-800C	PNDS-1000C
Main Motor Power£¨kw)	15-22	30-45	37-55
Crusher Moter Power£¨kw)	15	22	37
Shredder Diameter(mm)	320	400	400
Shredder Roter Length(mm)	600	800	1000
Crusher Blades QTY	18+2¡Á2	24+2¡Á2	30+2¡Á2
Shredder Blades QTY	32+2¡Á2	38+2¡Á2	58+2¡Á2
End Plastic Scraps Size(mm)	3-8	3-8	3-8

Application:

Plastic pipe purges shredder crusher machine can crush PP PE PVC HDPE pipe, big solid block of plastic, plastic purges, plastic lump, flushes, defects. plastic barrel, etc.

Description:

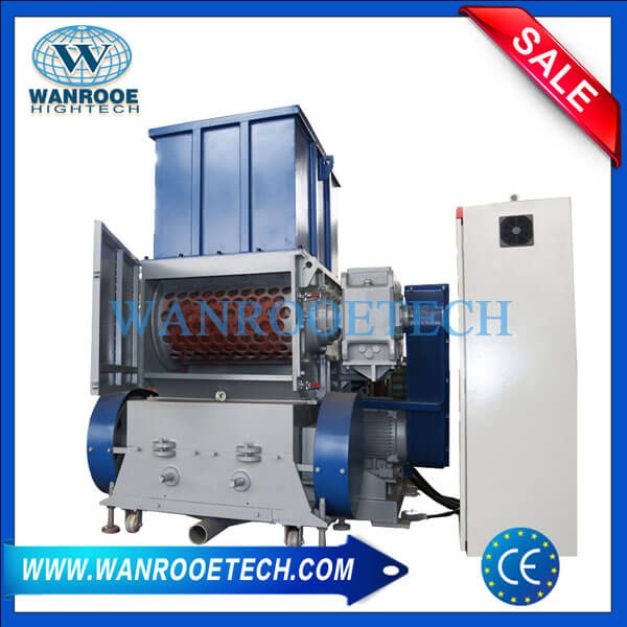

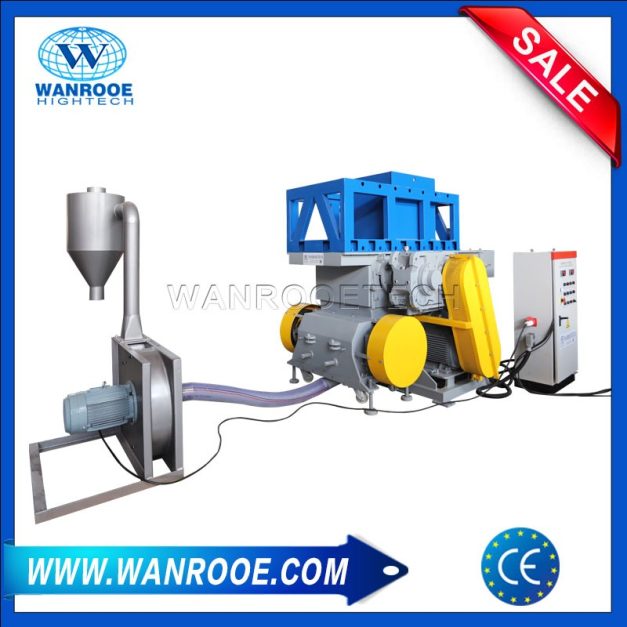

Plastic shredder crusher is a combination of shredder and crusher in a single unit.

Shredder-Crusher Combined processes input material like purgings and bulky objects to the desired granule size in two stages. From lumps to 40mm shredded particles, to 3-8mm regrind, our proven size reduction technology produces uniform regrind that is immediately ready for reuse, which can be directly used for your injection machine and extruder machine.

Without a conveyor between shredder and crusher, the compact design saves up to 65% space for your factory. The integrated shredder and crusher with Smart Control guarantee energy-saving and continuous operation.

Features:

? Space-saving and investment-minimized, compared to the individual shredder, granulator and conveyor.

? One-step size reduction to desired final output size.

? Slanted pusher ram ensures continuous operation & eliminates residual materials.

? Auto-reverse system re-orients shredder rotor¡¯s direction when motor overload and material jam.

? Shredder rotor knife adopts DC53 and crusher knife adopts Cr12MoV.

? Shredder and crusher are individually driven for better control.

? Main electrical components are trusted brands such as Siemens and Schneider.
