Twin Shaft Shredder Twin Shaft Shredder

Twin Shaft Shredders are extremely high torque, high throughput, rotating shear type size reduction machines often used for pre-shredding of large volume or high strength materials which may contain contamination. The unique modular split chamber design, provides excellent access to key components, therefore, reducing maintenance downtime and service costs. This is a huge advantage when comparing machines of this size.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameters

Twin Shaft Shredder Description:

Twin Shaft Shredders are extremely high torque, high throughput, rotating shear type size reduction machines often used for pre-shredding of large volume or high strength materials which may contain contamination. The unique modular split chamber design provides excellent access to key components, therefore, reducing maintenance downtime and service costs. This is a huge advantage when comparing machines of this size.

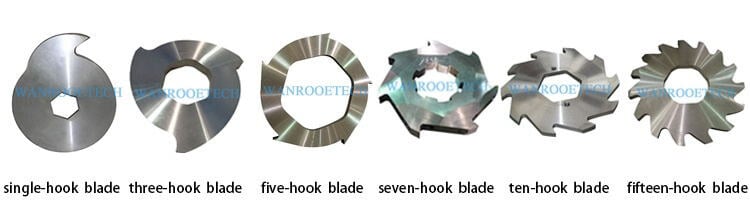

Twin Shaft Shredder Blades(According to different materials choose different blades ):

Double Shaft Shredder Blades

Twin Shaft Shredder Features:

Slow Speed High Torque Shredding Principle

Low Dust and Low Noise Operation and Rugged Low Maintenance Design.

Shock absorbing shaft couplings between gearboxes and blade shafts reduce operational stress.

High Strength Cutters and Spacers manufactured from high quality, heat-treated steel alloys are suitable for shredding tough materials.

Individual Cleaning Fingers mounted to the chamber sidewalls ensure quick discharge of shredded materials.

Modular Chamber Design with split endplates and bearing housings enable quick access to key components.

Advanced Adjustable Sealing System for the bearings.

Stand Alone Electrical Control Panel with Siemens PLC Control System.

Tested, Approved and Certified to the applicable CE safety standards.

Twin Shaft Shredder,Double Shaft Shredder,Dual Shaft Shredder,plastic shredder,Plastic Bag Shredder


Twin Shaft Shredder Typical Applications Include:

Tires – Car, Truck and O.T.R. (Off The Road – Earthmovers, etc.)

Steel – Car Body Shells, Sheet Scrap, Drums, etc.

Electronic Scrap – WEEE Directive Materials.

Wood/Timber – Pallets, C&D Waste, etc.

Aluminum – Castings, Profiles, etc.

Bulky Waste – Mixed Household, Commercial, Pulper Waste from Paper Industry, etc.

Twin Shaft Shredder,Double Shaft Shredder,Dual Shaft Shredder,plastic shredder,Plastic Bag Shredder


Model

Shredding Motor Power (kw)

Shredding Chamber size(mm)

PNSS-300

7.5

510×300

PNSS-400

7.5

510×400

PNSS-600

7.5+7.5

510×600

PNSS-800

18.5+18.5

600×800

PNSS-1000

22+22

800×1000

PNSS-1200

30+30

1000×1200

PNSS-1400

55+55

1400×1200

PNSS-1600

55+55

1600×1200

PNSS-1800

75+75

1800×1400

PNSS-2000

90+90

2000×1400

×
