Cable Recycling Cable Granulator Machine Copper Wire Granulator Applications：
Copper cable granulator is suitable for processing all kinds of scrap wires and cables, wire and cable with a diameter of 1-200mm, such as Automobile electrical wire, car electric wire, motorcycle electric wire, power cable, communication cable, signal cables and other miscellaneous cables which cannot be processed by wire stripping machine.
Cable Recycling Cable Granulator Machine Copper Wire Granulator Description：

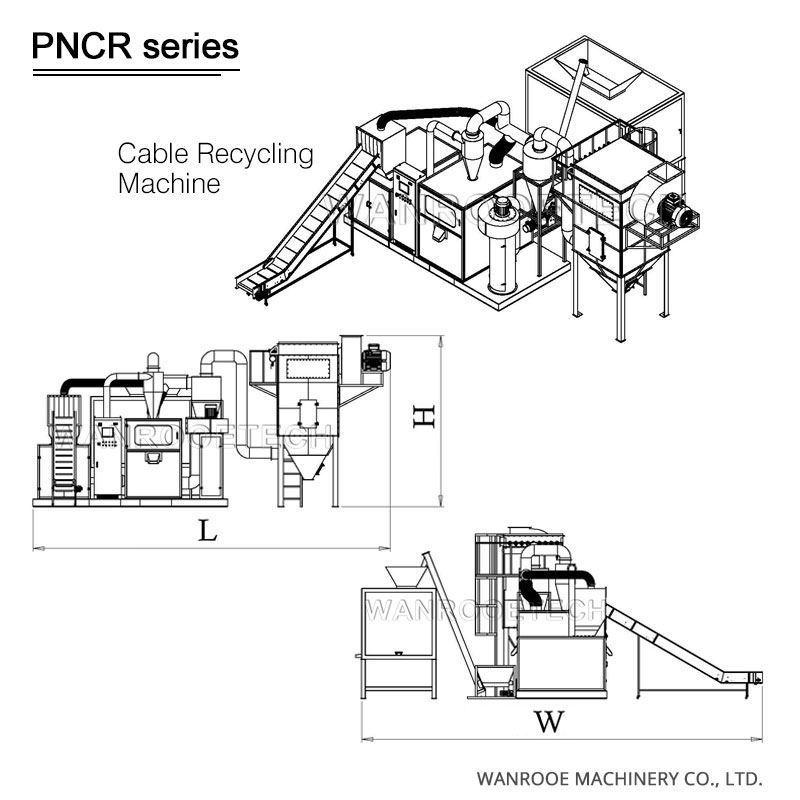

The PNCR copper wire granulator has advanced design, reasonable structure, space saving and reliable operation. This machine significantly reduces the space required for installation and production. It integrates separation and crushing functions, effectively separating the plastic sheath and copper wire in waste wires and cables, and converting them into plastic particles and copper particles. The separation of wire core and sheath is achieved through the direct excitation force of airflow and sieve box. Plastic particles, copper particles, and any mixture are guided to different discharge areas. Dust enters the dust removal device through the air duct. The vibrating screen is controlled by a frequency converter and the frequency can be adjusted according to the actual situation. The air volume can be adjusted through a regulating valve. The machine starts and stops in the preset order to ensure smooth and orderly operation.

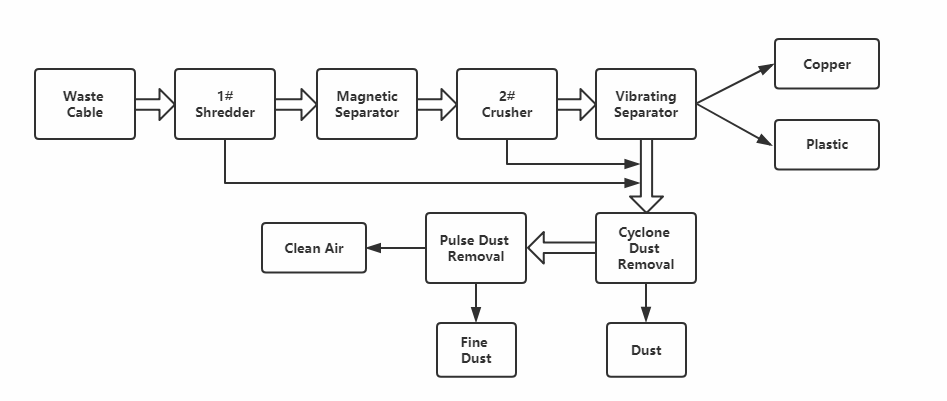

Cable Recycling Cable Granulator Machine Copper Wire Granulator Working Process:
Primary crushing: Using a specialized cable shredder, cut the cable into small sections of 10-20 millimeters in length.
Refined granulation: The initially crushed cable segments are sent to the wire and cable granulator through a conveying device, and further crushed into 3-8mm plastic and copper particles.
Efficient Separation: Using a vibration separation system and airflow gravity sorting technology, combined with a vibrating screen, plastic particles and copper particles are accurately separated.
Finished product output and environmental dust removal: The separated copper particles and plastic particles are discharged from the designated outlet of the granulator, and the generated dust is effectively collected by a pulse dust collector to ensure a clean working environment.
Cable Recycling Cable Granulator Machine Copper Wire Granulator Features:
Efficient processing: strong processing capacity, suitable for large-scale production needs.
High automation: manual feeding at one time, multi-machine combine to complete the separation and granulation automatically.
Stable control: PLC control system is adopted to ensure stable and reliable performance.
High recovery rate: copper recovery rate is up to 99%, maximizing resource utilization.
Environmentally friendly separation: wind vibration separation technology to avoid water pollution.
Dust removal system: Equipped with dust collector to reduce dust pollution and protect the environment.
Voltage customization: Voltage specifications are customized according to customers' needs, adapting to different power systems.
