Scrap Metal Steel Iron Aluminum Can Shredder Scrap Metal Steel Iron Aluminum Can Shredder

This aluminum can shredder adopts planet gear speed reducer driving; the blade is made of high-strength alloy steel, featured by strong abrasion resistance and high strength, etc.; differential operation between axes has the functions of tearing, extrusion and occlusion, etc. The electrical part adopts Siemens electrical elements programming control, with automatic detection and overload protection function, etc.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter

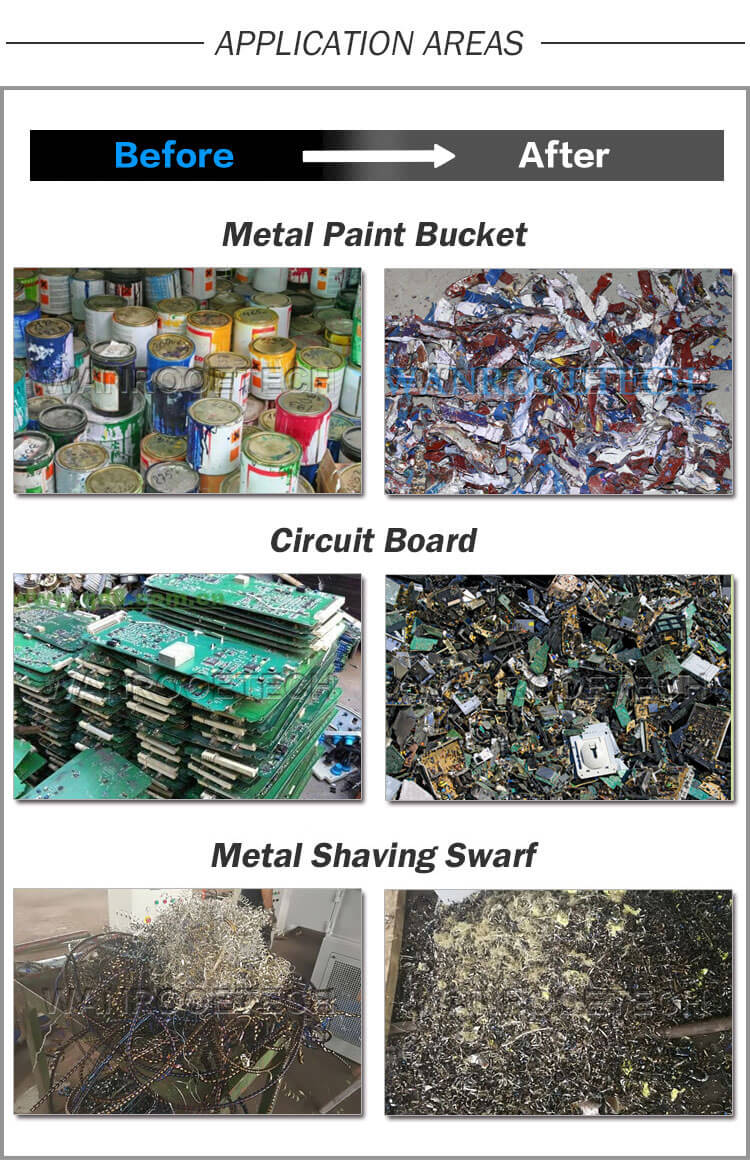

Application Areas:

Scrap Metal Steel Iron Aluminum Can Shredder can shred various metal scraps,steel shavings, scrap aluminum cans, scrap steel, scrap aluminum, scrap copper, scrap stainless steel, and scrapped automobile scrap, etc.

Aluminum Can Shredder,Aluminum Shredder,Scrap Metal Shredder,Steel Iron Shredder,Cast iron Shavings Shredder

Description:

This aluminum can shredder adopts planet gear speed reducer driving; the blade is made of high-strength alloy steel, featured by strong abrasion resistance and high strength, etc.; differential operation between axes has the functions of tearing, extrusion and occlusion, etc. The electrical part adopts Siemens electrical elements programming control, with automatic detection and overload protection function, etc. It's specially designed for crushing various aluminum materials and suitable for the refining of various large-sized hard-to-break and unblocked aluminum materials with the advantages of uniform discharging and controllable size, etc. The materials suitable for shredding include: scrap aluminum, aluminum can, aluminum strip, iron sheet, scrap steel, sheet iron, copper sheet, and other scrap metal materials. Its advantages include high efficiency, low rotating speed, large torque, and low noise.


Single shaft shredder Blade:

Single shaft shredder Blade

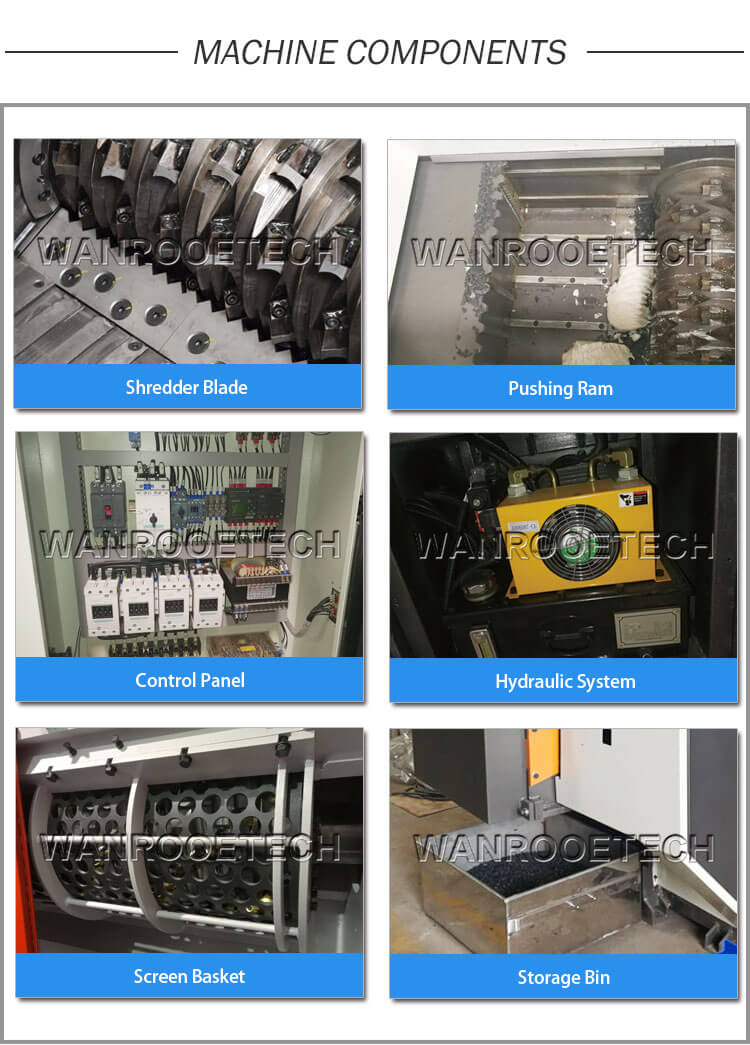

Components:

Aluminum Can Shredder,Aluminum Shredder,Scrap Metal Shredder,Steel Iron Shredder,Cast iron Shavings Shredder

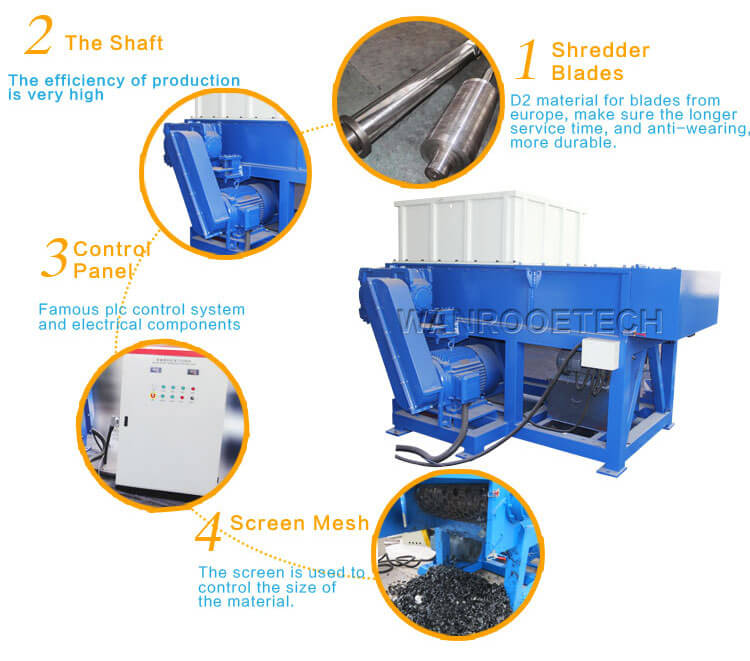

Features:

1)Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; Big hopper with big caliber for feeding big material

2)PLC control system with automatic overload protection and auto-reverse switch

3)Unique hydraulic pushing system accelerates the shredding speed, for light material particularly

4)Each dynamic blades has four cutting edges which enable reutilization after being abraded, by rotating 90 degree

5)Each fixed blades has two cutting edges which enable reutilization after being abraded, by rotating 180 degree

6)Quiet operation at low speed

7)Screen perforation is adjustable according to customers' requirement

8)The shredders can be adjusted according to customer-specific requirements for throughput volume, material to be processed, etc.

Aluminum Can Shredder,Aluminum Shredder,Scrap Metal Shredder,Steel Iron Shredder,Cast iron Shavings Shredder


Fiberglass Shredder, FRP Shredder, Fiberglass Recycling Machine, Fiberglass Shredding Machine, FRP Shredding Machine

ModelMain Power(kw)Hydraulic Power(kw)Shredding Diameter(mm)Shredding Rotor Length(mm)Rotating&Fixed Blades QTY (PCS)End Plastic Scrap Size(mm)
PNDS-600A15-222.232060032+2*230-50
PNDS-800A30-45340080038+2*230-50
PNDS-1000A37-554400100058+2*230-50
PNDS-1200A55-905.5400120095+2*330-50
PNDS-1500A75-1325.54801500110+2*330-50

×
