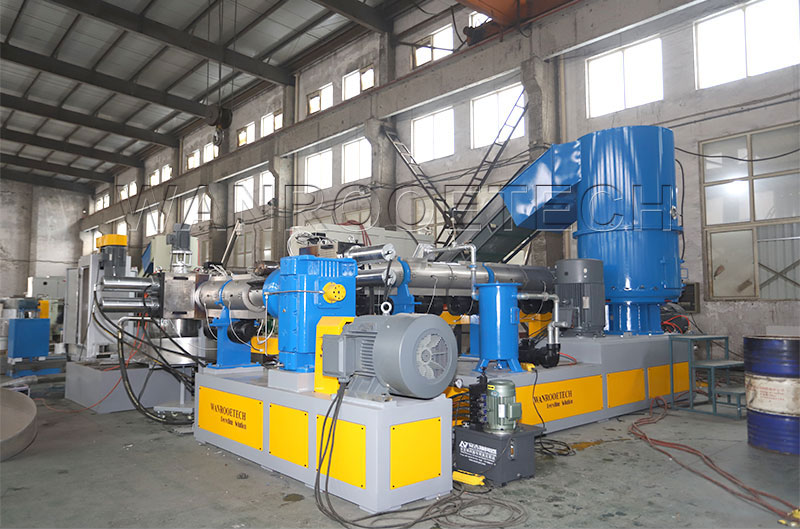

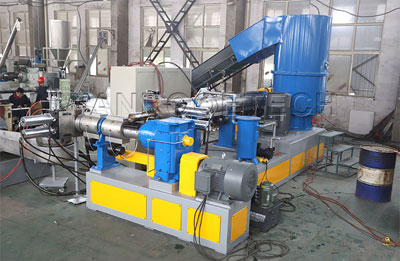

PE LDPE HDPE LLDPE Film Pelletizing Machine Application:
Applicable plastic materials: PE, HDPE, LDPE, LLDPE, etc
Material shapes: film, bag, non woven fabric, (PE, PP) regrind
Material types: (rolls, loose, bundled),
Material comes from offcut, industry defective film and washed film.
Note: depending on different material properties, various downstream equipment is needed.
PE LDPE HDPE LLDPE Film Pelletizing Machine Working Procedure:
film→belt conveyor→ Metal detector →Agglomerator /Compactor →1# Degassing screw extruder →1# Hydraulic screen changer→2# screw extruder →2# Hydraulic screen changer→ Mould head→water ring cutting →Dewatering machine→ Air dryer Blowing system→ silo storage→ Finished product packing
Feed film on the Belt conveyor machine and go into Compactor for cutting, heating, compacting and mixing, then enter the film pelletizing machine for extruding.
Feed regrind material through the Spiral charger and Feeder on the extruder.
Instruction: the film and regrind material can be recycled separately or together, depending on customers' different needs.
Video:
PE LDPE HDPE LLDPE Film Pelletizing Machine Features:
1. High efficiency
Compared with the primary design, the output of PE LDPE HDPE LLDPE film pelletizing line has been increased 20%.
2. Low power consumption
The power consumption reduces 15% compared with the primary design.
3. Highly automatic
Only 2 people are needed for one granulating production line.
PE LDPE HDPE LLDPE Film Pelletizing Machine Detail:

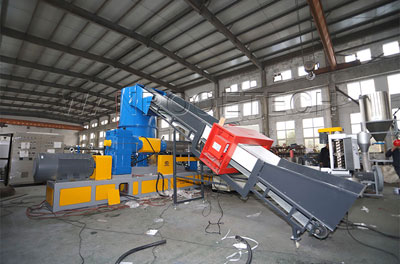

Belt Conveyor As standard design, plastic scraps such as film, filament, raffias conveyed into the compacting room through belt conveyor; to handle rolls' scraps, roll hauling off devices is an optional feeding method. Motor drives of conveyor belt and hauling device cooperate with ABB inverter. Feeding speed of conveyor belt or roll hauling off is fully automatic based on how full the compactor's room is. Metal detector can be combined with belt conveyor and can interlock with control system, to warn and stop the system, in case that metal is found in feeding. | Extruder |

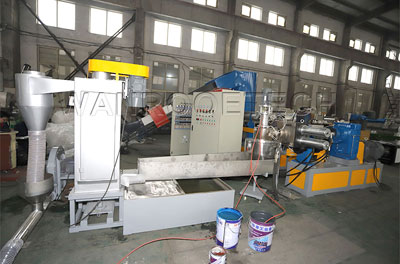

Water-ring Die-face cutting system Water-ring die-face/Strand cutting methods are usually adopted. In water-ring die-face cutting system, the rotary cutting blades will be pneumatically fit completely and closely to the die-face surface to ensure efficient cutting. Rotary speed of the blades is automatically adjusted by module system according to melt pressure at the die face. | Vibration drying system |
