Aluminum Plastic Crusher Granulator Application Areas:
The waste aluminum-plastic crusher granulator is a device that completely crushed the aluminum-plastic composite material into aluminum plastic. Aluminum-plastic crusher granulator has crushed all kinds of aluminum-plastic board, waste plastic aluminum, Toothpaste tubes, medicine blister packs, medicine capsules plate, pharmaceutical blister foil, aluminum, and plastic boards, various aluminum panels, waste aluminum plastic food bags, milk bags, yogurt foil sealing lids, bottleneck foil lids, aseptic foil lids waste, electrical circuit board, aluminum laminate, aluminum composite panel, aluminum composite pipe, aluminum-plastic board leftover and pieces of aluminum plastic board, etc.
Aluminum Plastic Crusher Granulator Description:
Aluminum plastic crusher granulator is necessary for plastic and metal recycling plants. Firstly, aluminum-plastic composite materials need to be crushed into mixed granules smaller than 10mm. The plastic crusher is a machine used to shred or crush materials into smaller pieces, crushing being an essential stage in the recovery of aluminum and plastic scrap.
The aluminum-plastic crusher adopts good tool steel and special knives, which are durable. The knives can be installed and adjusted in a retractable design. After being dull, they can be sharpened and used repeatedly, and have a long service life. The aluminum-plastic crushing motorized tool holder is a step-shear design, which decomposes the cutting force and causes the cutting force to increase exponentially. The movable knife seat is made of high-quality tool steel with reasonable rigidity and flexibility and is not easy to break or wear. It is fastened with high-strength steel screws (8.8 grade), and the structure is solid and durable. The main body of the aluminum-plastic crusher is made of thick-walled structural steel material, which can avoid the impact of long-term crushing materials on mechanical performance. The main shaft and double end faces of the aluminum-plastic crusher are processed by a high-precision coordinate machine tool to ensure that the concentricity and perpendicularity error is not greater than 0.05MM. Each part is set with a reference hole, and the surface is roughed and refined twice. Processing, parts interchangeability, high precision.
Structure Diagram:
Component：
|
|
Feeder Hopper Design Feeding hopper with double-layered on 4 sides and the inner layer is made of stainless steel with insulation material in between to provide good noise handling. | Durable Cutter Blades are made of high-strength alloy tool steel, with high hardness, good abrasion resistance, and long durability.
Adopted hexagon socket screw installation way of the blades and strong wear resistance.
Material: CR12MOV, hardness in 57-59° |
|
|
Motor Equipped with electrical current relay, motor overload protector and other multiple safety devices. | Spindle Cooling Device Unique cooling water circulation system,the heat generated by the machine to theoutside, can effectively avoid the crushingmaterial caking. |
|  |
Emergency Stop Switch The red switch on the operation panel ofthe machine is mainly used as an emer-gency stop when the equipment fails. | Customized Screen Mesh Customized mesh sizes are available ac-cording to client's demand. |
|
|

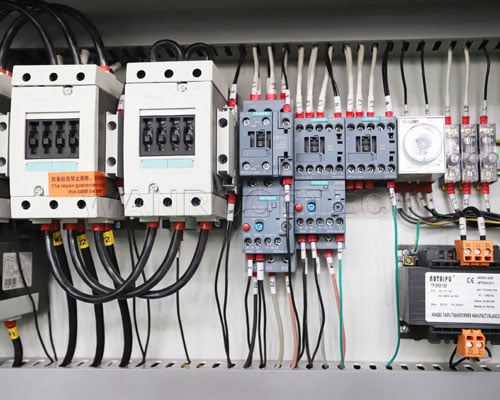

Storage Bin The extended drawer can accommodate more materials and comes with universal wheels for easier movement. | Electric Component The electrical components adopt international famous brands, with high configuration and stable operation. |
 |
|
Storage Silo(optional) Feeding and receiving, good sealing performance, admixture hopper set dust inlet, effective control of dust. | Belt Conveyor(optional) The plastic waste is conveyed into the crusher through the belt feeding device; The device adopts ABB/Schneider frequency converter for frequency control. The conveying speed of the belt feeding device is linked with the fullness of the crusher, and the speed of the conveyor belt is automatically adjusted according to the current of the crusher. |
Technical Features:
1. This Series crusher machine adopts imported high-quality tool steel, special cutting-tool. The installation of the cutting tool can be adjusted. The cutting tool can be sharpened again and again, Its use life is very long.
2. The moving cutting knife stand is a step designing to make cutting force resolve and increase the cutting force times.
3. The cutting tool adopts imported SKD11 material and is treated with special technology, which is more durable.
4. The shaft is made of high-level steel.
5. Claw knife structure design, stronger crushing force.
6. Feed hopper of crusher uses optimization design and special rust-proof treatment, avoiding the leakage and pollution of the material during the process of crushing.
7. The product design is scientific and reasonable and conforms to the European CE standard.
8. The unique cooling water circulation system will bring the heat produced by the machine to the outside of the machine, which can effectively avoid comminution agglomeration.
