HDPE PE Pipe Extrusion Machine HDPE PE Pipe Extrusion Machine

Flow chart of HDPE/PE pipe extrusion line :
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder→ color band extruder → mould and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker

Quantity:
Share this:
  • Product Description
  • Parameter
  • Video

HDPE PE Pipe Extrusion Machine Description:

This HDPE/PE Drainage Pipe Extrusion Line can be used in HDPE Large Diameter Gas and Water Pipe which has excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, the resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, it is a preferred gas and water pipe for the ductwork system between the city and its suburb, Large diameter HDPE pipes start to play a very important role in the city water and gas supply systems.


Flow chart of HDPE/PE Pipe Extrusion Line :

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder→ color band extruder → mold and calibrator → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker


HDPE PE Pipe Extrusion Machine Components:

machine components

Single Screw Extruder

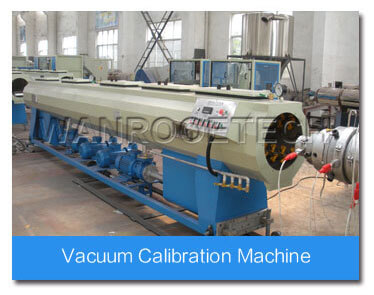

Vacuum Calibration Machine

Vacuum Tank

Haul Off Machine

Haul Off Machine

Pipe Stacker

HDPE PE Pipe Extrusion Machine Feature:

1.High speed, big capacity, and low power consumption the fastest lineal speed up to 35m/min and power saving of 30%

2.Achieved co-extrusion with 1-5 layers and one mold with several outputs

3.High-speed calibration and good cooling effect with the spiral mold structure design and special pipe inner cooling system

4.High-speed material feeding with special spiral groove feeding design and outside water jacket cooling

5. Excellent shearing, mixing and stable extrusion with professional barrier type screw,  creative shearing and mixing design.

HDPE PE Pipe Extrusion Machine

ModelScrew DiameterL/DPipe Range(mm)Machine Motor PowerTotal Power(kw)Line Length
(kw)(M)
PE-6365mm33:01:0016-63378024
PE-11065mm33:01:0075-1105511030
PE-16075mm33:01:0090-1609015032
PE-25075mm33:01:00110-25011020042
PE-31590mm33:01:00160-31516024044
PE-40090mm33:01:00200-40018530050
PE-500120mm33:01:00250-50028035056
PE-630120mm33:01:00315-63028048056
PE-800150mm33:01:00400-80031555072


×
