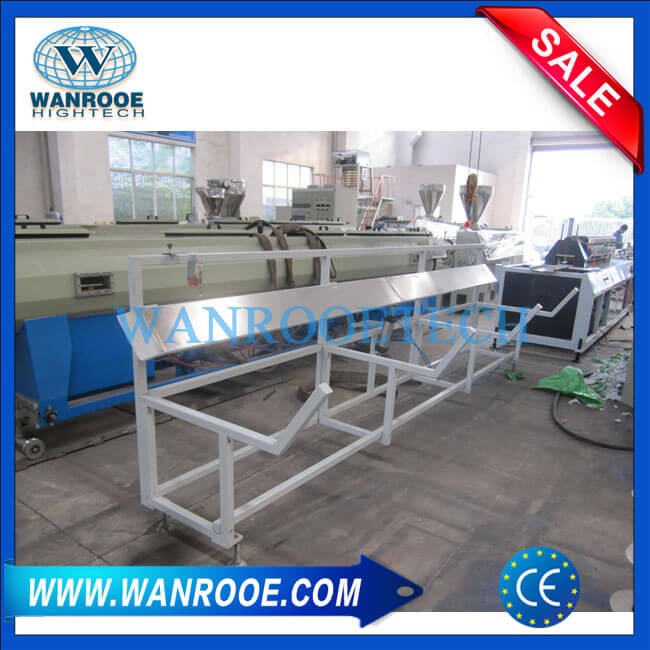

PVC Ceiling Panel Extrusion Line PVC Ceiling Panel Extrusion Line

PVC plastic profile production line mainly PVC, UPVC as raw materials, production of various kinds of plastic doors and Windows profiles (plastic profiles, decorative profiles, etc.For different sectional surface and molds,twin parallel(conical)screws extruder of different specifications can be chosen together with corresponding vacuum calibrating table,haul-off unit,cutting unit,tilter etc.Capacity of main frame can be optionally chosen from 60-700kgs/hour.The haul-off unit has applied unique lift technique of our co.Its work is stable,its reliability is good,its pulling force is large.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter

Description:

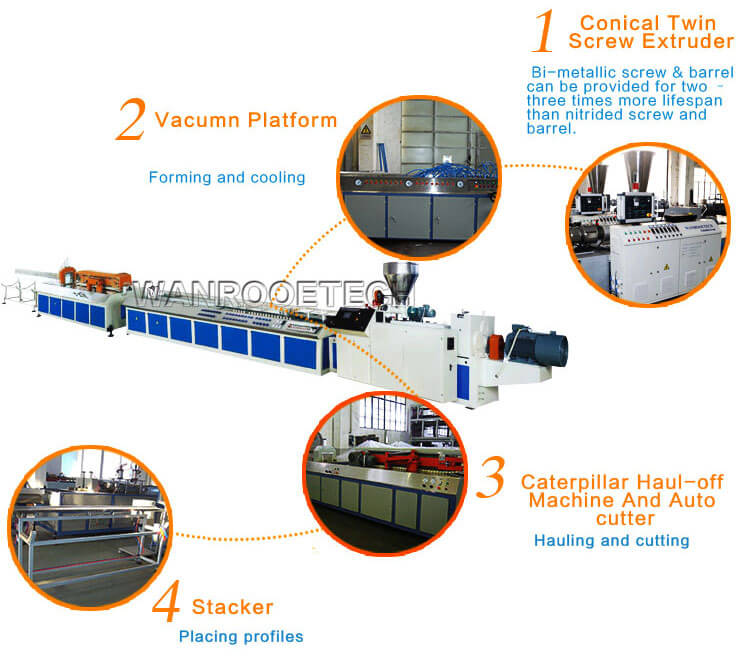

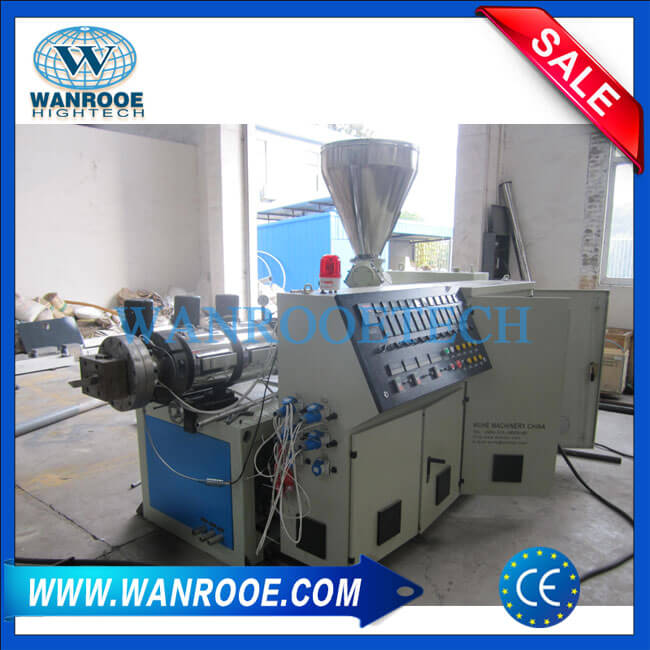

This PVC  Profile production line is my company to absorb the international technology, adopt efficient conical twin screw extruder, vacuum calibrating process, used to produce PVC doors and Windows profiles, window sill board, wall hangs Taiwan, decorative plate profile extrusion.

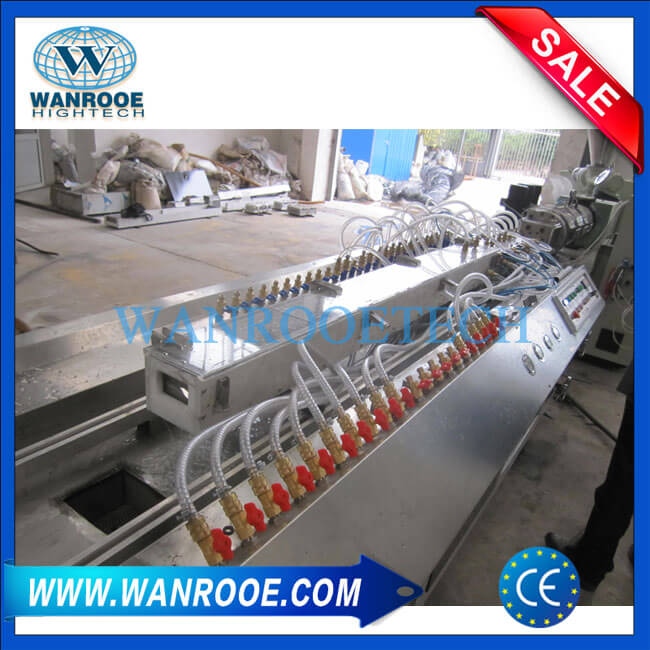

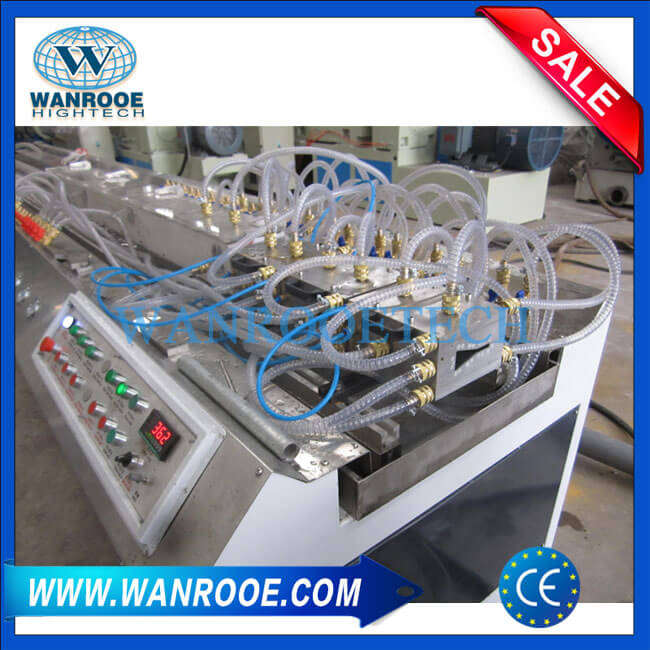

PVC plastic profile production line mainly PVC, UPVC as raw materials, production of various kinds of plastic doors and Windows profiles (plastic profiles, decorative profiles, etc. For different sectional surfaces and molds, twin parallel(conical)screws extruder of different specifications can be chosen together with the corresponding vacuum calibrating table,haul-off unit, cutting unit, tilter, etc. The capacity of the mainframe can be optionally chosen from 60-700kgs/hour. The haul-off unit has applied the unique lift technique of our co. Its work is stable, its reliability is good, its pulling force is large. Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet the demand of high speed extruding. Movement speed and drawing speed of cutting machines keep synchronous. All movements are controlled by imported PLC,the design is reasonable,the operation is stable. It can conduct automatic cutting with a fixed length.

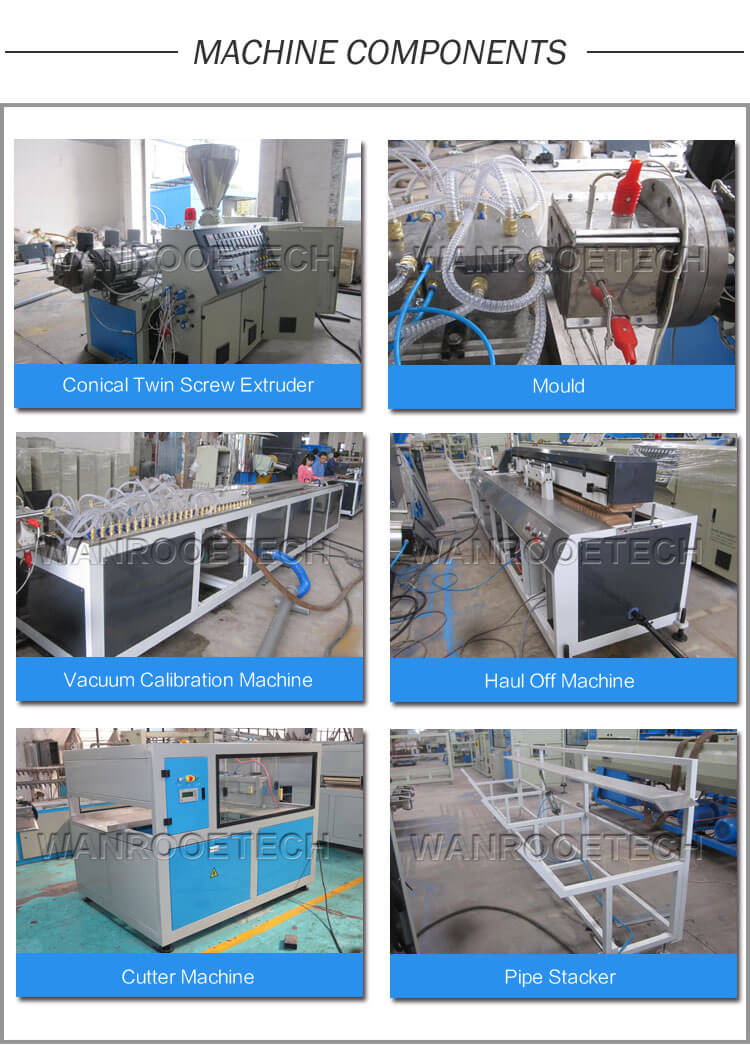

Components:

PVC Ceiling Panel Extrusion Line,PVC Profile Production Line,PVC Profile Extrusion Machine,PVC Profile Extrusion,PVC Profile Machine

Applications:

PVC plastic profile production line can produce push-pull series, 60 (60 second rail frame, 60 in the open, in 60's, 60 six windows, 60 single pressure, etc.), the 80 series (80, 80 bright pretty, 80 lightbox stand, 80), 88 series, and their respective by the series of PVC - U profiles; PVC plastic profile production line is suitable for production of push-pull window, Windows and Casement Windows, fixed Windows, etc. PVC Windows and doors profiles do not erode by any acid drugs, don't affect by waste gas and salt. Imported evolutionary agent, add UV absorber materials, in - between 30 to 70 degrees of the scorching sun, rain, dry and wet change does not change color, not aging, not brittle. Doors and Windows designed with the waterproof board, drain slots, rainwater can be completely insulated from outside, and window of model steel door is absolutely fine material, fire combustion, combustion, is your ideal choice.


Feature:

PLC control system is available

All electrical components adopt famous brand: OMRON, ABB, SIEMENS, etc

Overcurrent protective of motor

With online protection film wrapping device

PVC Ceiling Panel Extrusion Line,PVC Profile Production Line,PVC Profile Extrusion Machine,PVC Profile Extrusion,PVC Profile Machine

Application Areas:

PVC /WPC Profile Extrusion Line can produce all kinds of profiles, for example, window, door and door frame, PVC ceiling panels, pallet, cladding of outdoor wall, facility of outside park, floor, etc.



Model
Max width(mm)
Extruder model
Max output(kg/h)
 motor power(kw)
CMDX108
108
SJZ51/105
100
18.5
CMDX 180
180
SJZ51/105 or SJZ55/110
100/150
18.5/22
CMDX 240
240
SJZ65/132
250
37
CMDX 300
300
SJZ65/132
250
37
CMDX 400
400
SJZ80/156
350
55
CMDX 500
500
SJZ80/156
350
55
CMDX 600
600
SJZ80/156
400
75


×
