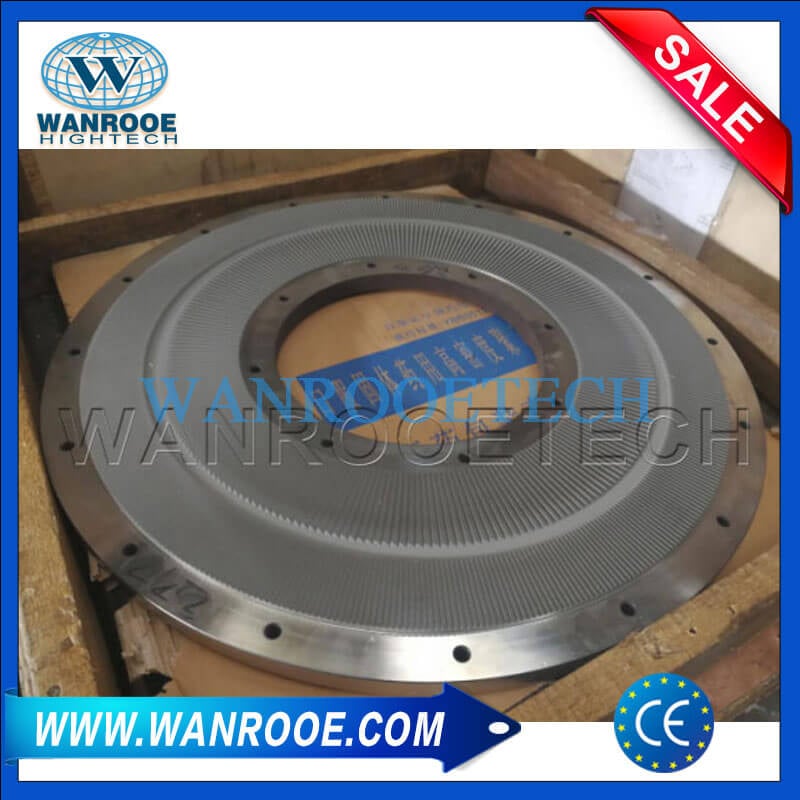

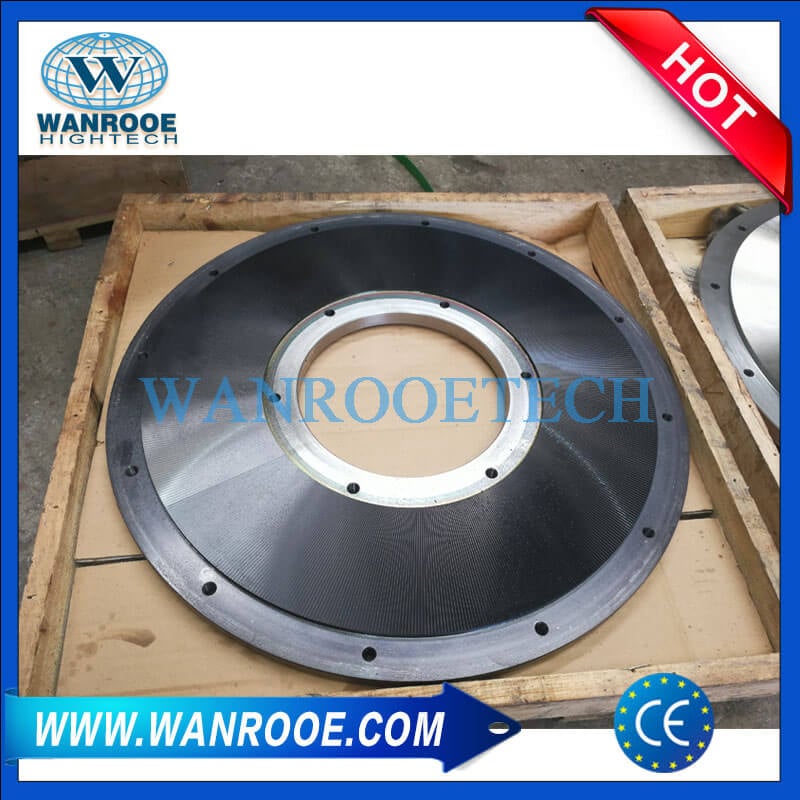

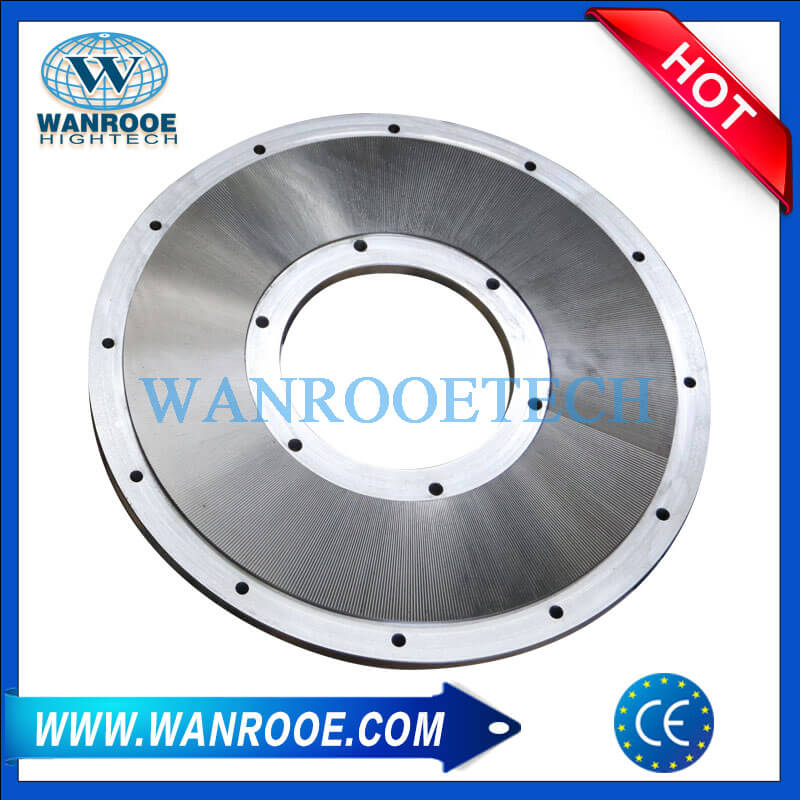

Coating Tungsten Pulverizer Disc Coating Tungsten Pulverizer Disc

To deal with rigid/ hard PVC, we suggest coat Tungsten on the disc, then it can serve a longer time.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter

Coating Tungsten Pulverizer Disc Application Areas:

Coating Tungsten Pulverizer Disc is to deal with rigid/ hard PVC, we suggest coat Tungsten on the disc, then it can serve a longer time.This high-speed rotating disk is suitable for LLDPE/HDPE/PP/PC, PE, PVC, ABS, EVA,PA,TPU and so on. It is together used with Wanrooe PNMF series pulverizer.


Coating Tungsten Pulverizer Disc Description:

Our factory have imported two sets of the CNC machine which are specially used to produce the Plastic Pulverizer Blade, Pulverizing disc, Grind Mill, Mill Disc, Grinding Disc, Granulator Disc, pulverizing disc, they can make sure the high quality of the blades, disc or mill quality! At the same time, we use the D2 material, after treatment, the blades have the feature of high hardness, up to 60-63HRC, and anti-wearing! One set of the blades can produce 300-500tons PE or PP plastic granules! If for the PPMC, HIPS, PET, PVC etc some special hard or rigid material, which can cause the grinding disc, mill or blades wearing quickly, we can coat one layer of the WC, TiAlN etc specially alloy metal powder, it can make the Plastic Pulverizer Blade’s service time three or four times comparing with the common blades, mill or disc!

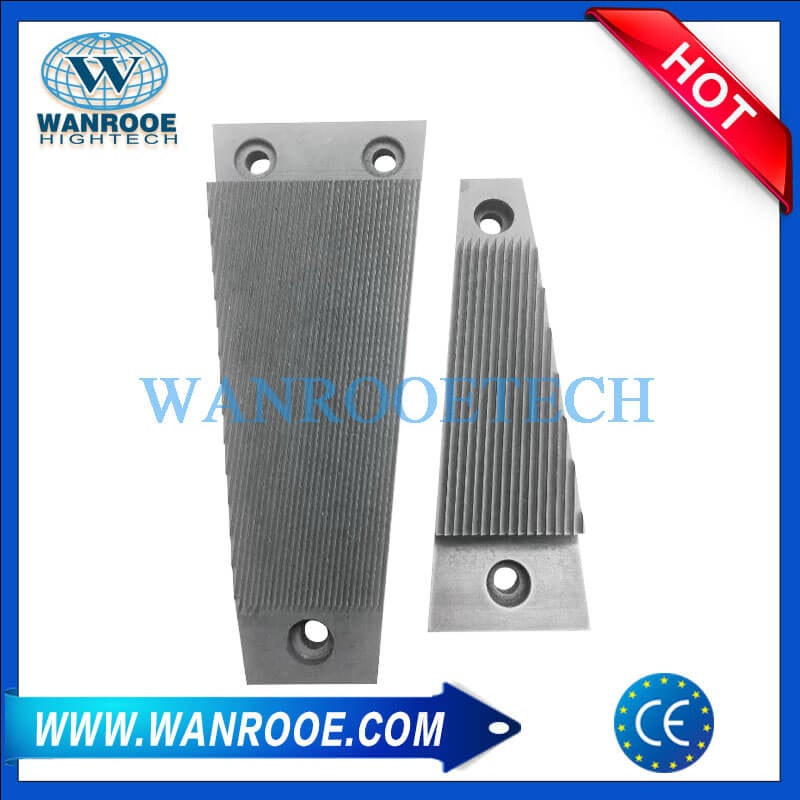

Plastic pulverizer disc blades/knives manufacturer

We are a blades manufacturer engaged in plastic recycling field for many years. So we have sufficient experience at material selection, heat treatment and guarantee high precision and longer work life of the blades.


Coating Tungsten Pulverizer Disc Product Application

1. Material: D2,SKD11,HSS,9CRSI,T10.

2. Hardness: HRC56-60 according to customers’ requests.

3. Triple tempt for optimum wear resistance.

4. Precise heat treatment.

5. Excellent cutting longevity and wear resistance.

6. High intensity, high toughness, small thermal deformation.

7. Blades are eliminated unwanted and uncontrollable residual stress.

UHMWPE Pulverizer grinder,UHMWPE Pulverizer mill ,UHMWPE Grinder Machine, Pulverizer grinder,pulverizer plastic, Plastic Grinder Machine

ModelPNMF-300PNMF-400PNMF-500PNMF-600PNMF-800
Disc Diameter(mm)300mm400mm500mm600mm800mm
Dimension L*W*H(mm)3700*1500*37003800*1600*38003900*1700*39004000*1800*40004300*1900*4300
Main Motor(kw)11-1522-3030-3745-5575-90
Air Blower(kw)345.55.5kw7.5
Vibrating Motor (kw)0.550.550.751.11.1
Air Lock Motor (kw)0.750.750.750.750.75
Capacity (kg/h)30-5050-120120-200200-350400-600
×
