HDPE PP Hard Plastic Grinding And Washing Line
HDPE PP Hard Plastic Grinding And Washing Line

HDPE PP Hard Plastic Grinding And Washing Line HDPE PP Hard Plastic Grinding And Washing Line

This HDPE,PP Hard Plastic Grinding and Washing Line is used for crushing and washing hard plastics, rigid plastics, such as WEEE waste plastics recycling machine, PP car battery washing machine, HDPE milk bottles washing machine, HDPE/PP jerry cans washing line, HDPE shampoo bottles washing and recycling machines, PP barrels washing machine, HDPE fruit case HDPE PP crate washing machine, etc. The capacity of this line is from 300kg/h to 2000kg/h.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameter

HDPE PP Hard Plastic Washing Line Description :

HDPE PP Hard Plastic Washing Line is used for crushing and washing hard plastics, rigid plastics, such as WEEE waste plastics recycling machine, PP car battery washing machine, HDPE milk bottles washing machine, HDPE/PP jerry cans washing line, HDPE shampoo bottles washing and recycling machines, PP barrels washing machine, HDPE fruit case HDPE PP crate washing machine, etc. The capacity of PP HDPE hard plastic washing line is from 300kg/h to 2000kg/h.

HDPE PP Hard Plastic Washing Line Process Flow:

NO
Process
Machine
Description
1
Send the film and bags to the wet crusher machine
 Conveyor with Metal Detector(Optional)
It separates impurities such as metals in the films and bags, Sends the materials to the wet crusher machine
2
Cuts the films and bags into small pieces  size
Wet Crusher Machine

A wet crusher cuts the PP / PE film into small pieces approximately 10-20mm in size and moves onto the next piece of equipment.
3
 Send the films and bags to the Floating Washing machine
Screw Feeder
 Put the films and bags into the Hot washer to clean
4
The first time Floating wash the bags and films
Floating Washing Tank
As the PP / PE films enter the friction washer, the plastic film rubs against each other at high speeds getting rid of hard-to-remove contamination.
5
Feeding bags and film scraps to friction washer
Screw Feeder
Put the films and bags into the High-speed Friction Washer to clean
6
Separate the contamination from film and bags
High Speed Friction Washing Machine
After crushing material from enters the mouth, through the high speed on the axis of the blade flap and spray water to the common function of good cleaning effect.
7
The second time Floating wash the bags and films
Floating Washing Tank
It is used in cleaning film and bags, making the film cleaner.
8
Dry the film and bags

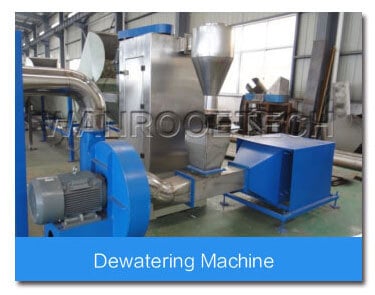

Dewatering Machine
The dewatering machine uses centrifugal force to spin water moisture off the films and bags.

9
Hot air to dry the films and bags
Pipeline Dryer
Using the hot air to take the humidity away from the clean material.
10
Storage dry pieces of films and bags
Storage silo
A storage tank for the clean, dry pieces of PP  PE films and bags.
11
 make film and bags into granules
(Optional)
Pelletizer / Extruder
 We offer both single-screw extruders and twin-screw extruders. Based on your requirements, we offer both one-stage and double-stage pelletizing setups where granules can be formed using a granulator or water-ring cutting.

HDPE PP Hard Plastic Washing Line Components:

pp pe washing line components

 Conveyor with Metal Detector(Optional)

wet crusher machine

Screw Worm Friction Washing Feeder

floating washing tank

high speed friction washing machine

dewatering machine

pipeline dryer

storage silo

HDPE PP Hard Plastic Washing Line Features :
To crushing washing recycling the used, dirty waste PP PE films/bags, protect the environment, Avoid white pollution.
This recycling line is composed of crusher, cold & hot washing system, dewatering, drying, packing system, etc.
This PP PE waste plastic crushing, recycling and washing recycling machine line can easily wash and recycle waste PP PE films/bags. Waste and dirty PP PE films/bags can be processed step by step, by this recycling machine. It is special for washing PP PE films/bags. We can help to attach equipment at the end of the washing recycling line so that the completely dry flakes can be collected and packed directly after been washed.
The whole HDPE PP hard plastic washing line can design based on how dirty the PP PE films/bags are, and make sure of the quality of the final products.
Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PP PE films/bags be the PP PE granules material and in order to produce new PP PE products.
HDPE PP Hard Plastic Washing Line Application Areas:

HDPE PP hard plastic washing line of Wanrooetech is capable of processing a wide range of hard and soft plastic waste, for example, agricultural films, greenhouse films, package films and bags, HDPE/PP bottles, barrels, boxes, etc.

HDPE PP washing recycling,Hard Plastic Washing Machine,HDPE Bottles Washing Machines,HDPE Washing Machine,HDPE PP washing recycling

ModelPNQF-300PNQF-500PNQF-1000
MaterialPP, PE,HDPE filmPP, PE,HDPE filmPP, PE, HDPE film
Power100kw150kw280kw
Capacity300kg/h500kg/h1000kg/h
Water Consumption4-6litres/kg3-6litres/kg2-3litres/kg
End Products Humidity<=5%<=5%<=5%


×
