UPVC Window And Door Frames Shredding PVC Plastic Pipe Profile Shredder UPVC Window And Door Frames Shredding PVC Plastic Pipe Profile Shredder

UPVC Window And Door Frames Shredding PVC Plastic Pipe Profile Shredder uses the interaction of movable cutter heads and fixed knives to tear, cut and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, and paper etc.

Quantity:
Share this:
  • Product Description
  • Video
  • Parameters

Application Areas:

Plastic pipe shredder can mainly supply and discharge PVC pipes, chemical pipes, farmland irrigation and drainage pipes, polyethylene pipes for gas, PVC core foam pipes, PVC, PE, double-wall corrugated pipes, aluminum-plastic composite pipes, cross-linked PE pipes, plastic-steel composite pipes, polyethylene silicon core pipes, and underground pipes are shredded.

Plastic Pipe Shredder, Plastic Profile Shredder, PVC Shredder Machine, Window Profile Shredder, Plastic Shredder

Description:

The PNDS Single shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, and paper, etc. The cutter head is consists of basic shaft and pieces of quadrangle cutter. There are four edges which are easy to change. 'V' shaped rotary cutters are fixed on a single shaft. The fixed cutter is mounted at an angle in adjacent to the rotary cutter to achieve better cutting. The material is grabbed between 'V' shaped rotary cutters and fixed cutter shreds repeatedly. During the grinding process, the evenly cutting, saving of energy and reducing of noise are ensured by the installation of 'V' shape rotor knives. Also, the knives are very easy to install and remove.

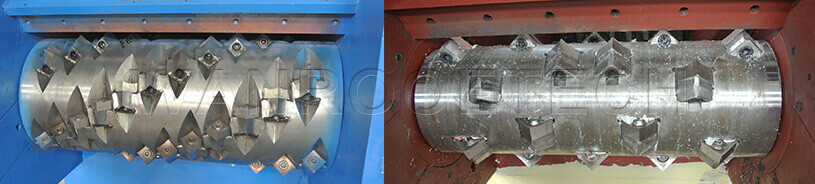

Single Shaft Shredder 'V' shaped blade:

Single Shaft Shredder 'V' shaped blade


Working principle:

The motor drives the shaft to make knife rotates in high speed, the material is put to between the knife shaft and fixed knife, the materials are a shredder, the qualified size will discharge from the screen mesh, the oversize material will be sent back for re shredding. The final product size can be adjusted by changing the final product size.

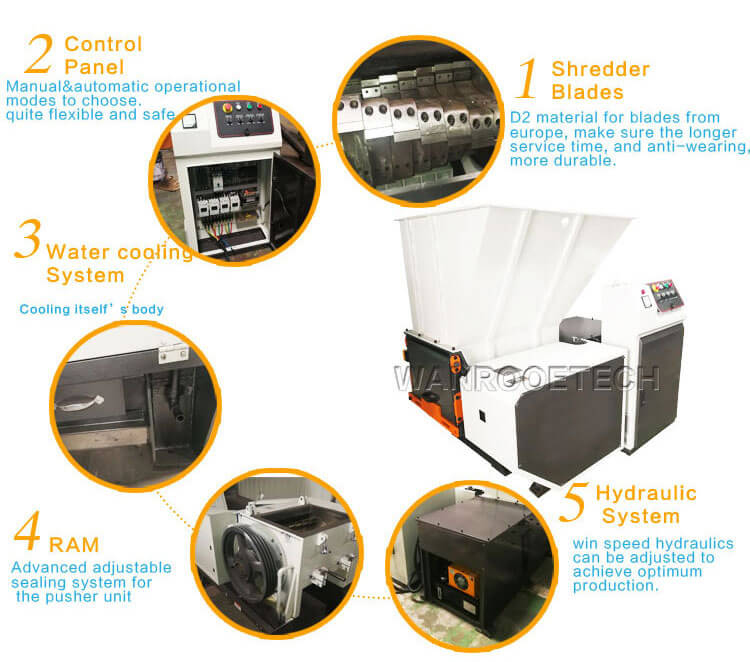

Machine Parts:

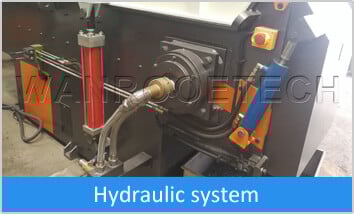

Hydraulic system


Hydraulic system


Twin speed hydraulics can be adjusted to achieve optimum production

Integrate oil/air cooler: Maintain the temperature for continuous operation.

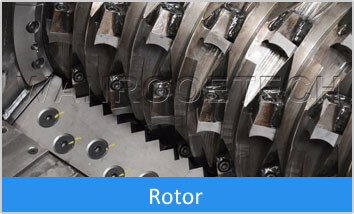

rotor


Rotor


V type rotor design, energy-efficient and maximum cutting force, Knives are made of imported material D2 through special manufacture process and heat treatment, the knives become more durable. Adjustable knives can be rotated and based on four edges before replacement.

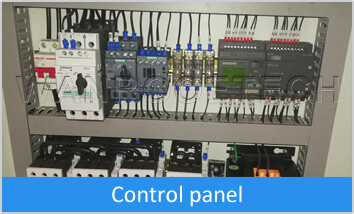

Control panel


Control panel


Equipped with independent and reliable electrical control panel like SIEMENS PLC control system, DELIXI contactor, SCHNEIDER Electric, etc.

Manual & automatic operational modes to choose, quite flexible and safe.

The shredder of this series has the motor overload protection.

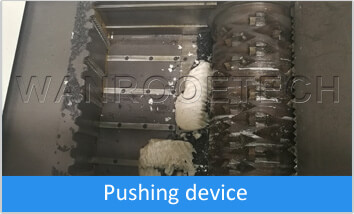

Pushing device


Pushing device


Pushing the material automatically to the shredding rotor while working. More efficient and can achieve a high capacity. According to material kind, can adjust the pushing speed to avoid overload.

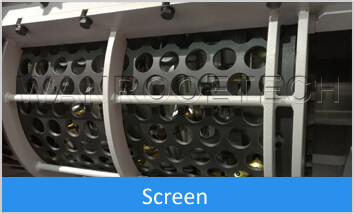

Screen


Screen


various screens can be chosen for different shredding requests and materials.

To keep the operator safe, the machine will automatically stop when its screen is opened.

Screen for the heavy machine is made by sections in order to keep its convenience change and maintenance.

Technical Features:

1. The shredder single shaft for plastic with the big feeding mouth, it can put the big plastic or rubber product freely.

2. The rotary and cutting blade with edge of special design, it can get very high efficiency and high capacity.

3. The shredder single shaft for plastic is controlled by PLC system; the blade can rotate in the opposite direction and close automatically if something unexpected happens; with very high safety service.

4. The shredder single shaft for plastic runs slowly with low noise and less dusty.

5.The blade material with special alloy steel made, with long life.

6. All the machinery and electrical devices are protected in accordance with the European CE standard.

Plastic Pipe Shredder, Plastic Profile Shredder, PVC Shredder Machine, Window Profile Shredder, Plastic Shredder

Plastic Pipe Shredder, Plastic Profile Shredder, PVC Shredder Machine, Window Profile Shredder, Plastic Shredder

ModelPNDS-600APNDS-800APNDS-1000APNDS-1200APNDS-1500A
Dimension L*W*H(mm)2455×1478×17002825×1747×18752825×2004×18752825×2564×18752825×2964×1935
Cutting Chamber C/D(mm)1200×6001410×8001410×10001410×12001410×1500
Main Powerkw)15-2230-4537-5555-9075-132
Hydraulic Power(kw)2,2345.55.5
Shredding Diameter(mm)320400400400480
Shredding Rotor Length(mm)600800100012001500
Rotating&Fixing Blades QTY(psc)32+2×238+2×258+2×295+2×3110+2×3
End Plastic Scraps Size(mm)30-5030-5030-5030-5030-50
×
