Steel Wire Reinforced HDPE Composite Pipe Recycling Machine



Steel wire reinforced HDPE composite pipe recycling machine is mainly used to deal with the diameter of less than 400mm steel srtp pipe, the entire recycling line contains shredding, crushing, magnetic separation, and ultimately can be separated from the steel wire, steel and plastic, the entire recycling process only requires 1-2 people, fully automated, equipped with PLC automatic control program, save time and effort, with stable performance safe and reliable and so on.

Steel Wire Reinforced HDPE Composite Pipe Recycling Machine

Why do we need steel wire reinforced HDPE composite pipe recycling?
Steel wire reinforced HDPE composite pipe is a new and improved steel skeleton plastic composite pipe, also known as srtp pipe. This pipe is made of high strength over plastic steel wire mesh skeleton and thermoplastic polyethylene as raw materials, steel wire winding net as the skeleton reinforcement of polyethylene plastic pipe, high-density polyethylene (HDPE) as the substrate, using high-performance HDPE modified bonding resin will steel wire skeleton and inner and outer high-density polyethylene closely together so that it has an excellent composite effect, that is, through the steel wire winding device in It is realized by winding steel wire on the outer wall of the inner tube and then compounding the outer tube. Due to the complex structure of the product, which contains steel wire mesh, therefore, the recycling of steel wire mesh composite pipe has become a problem, it is difficult to achieve the steel wire mesh and plastic pipe can be completely recycled, reducing the value of reuse.


Steel Wire Reinforced HDPE Composite Pipe Recycling Machine Video:

How to recycle steel wire reinforced HDPE composite pipe?

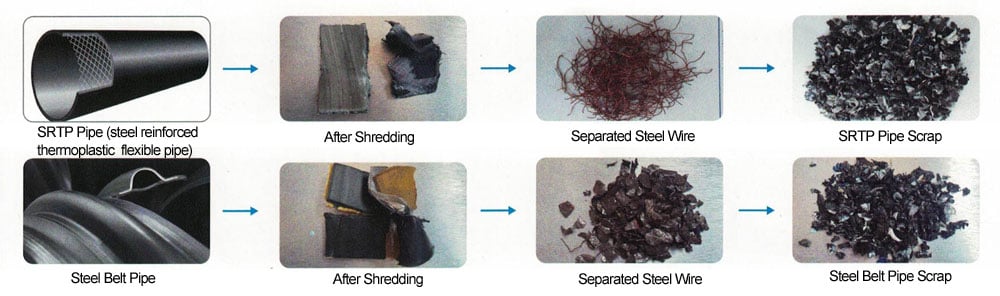

Feeding - shredding - conveying - crushing - magnetic separation - plastic + steel wire or steel belt

Steel Wire Reinforced HDPE Composite Pipe Recycling process

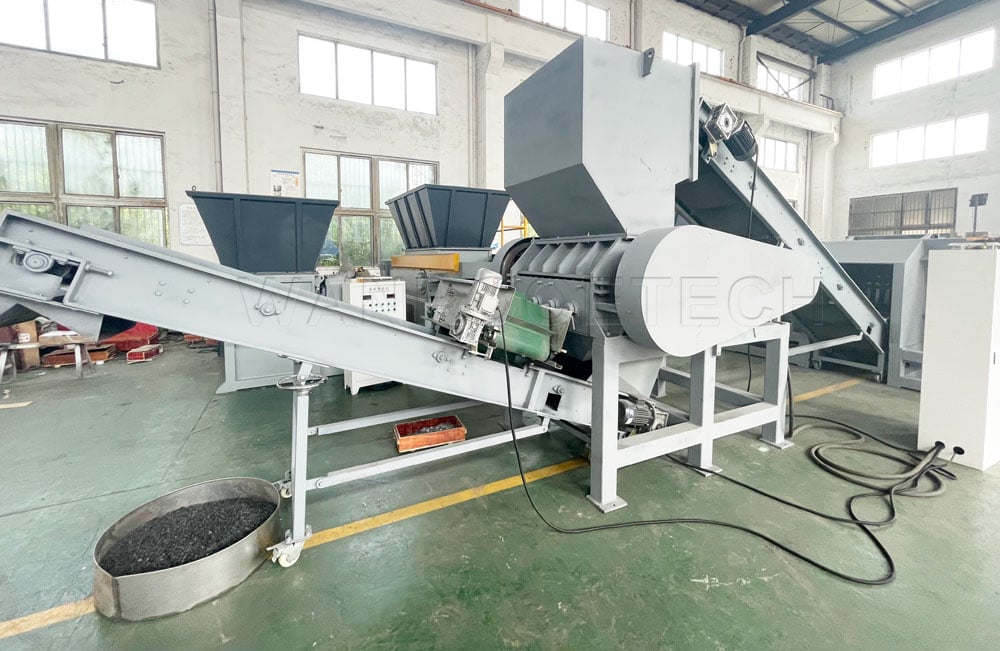

Steel wire reinforced HDPE composite pipe recycling machine, including shredder, crusher, conveyor, and magnetic separation. In the feeding part, we design the shredder as a side feeding, which can shred the whole tube without cutting, and the shredded steel wire mesh skeleton tube, through the conveyor belt into the crusher, through the crusher crushing out the material through the magnetic separation of the material separation, and finally get the steel wire and plastic crushing material.



steel wire reinforced HDPE composite pipe recycling machine main equipment:

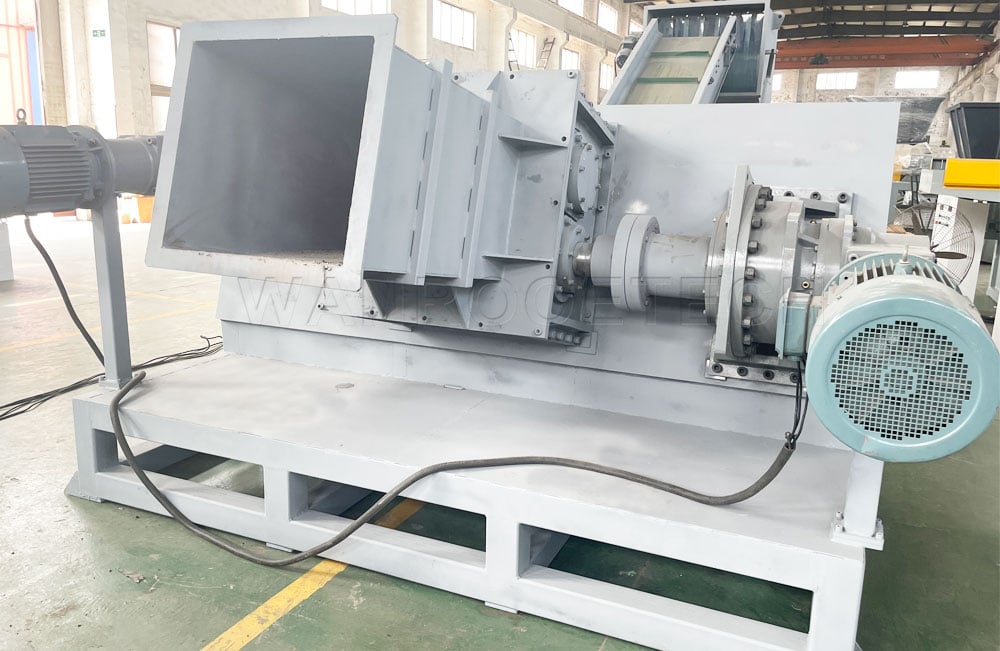

Steel Wire Reinforced HDPE Composite Pipe Recycling Shredder

shredder

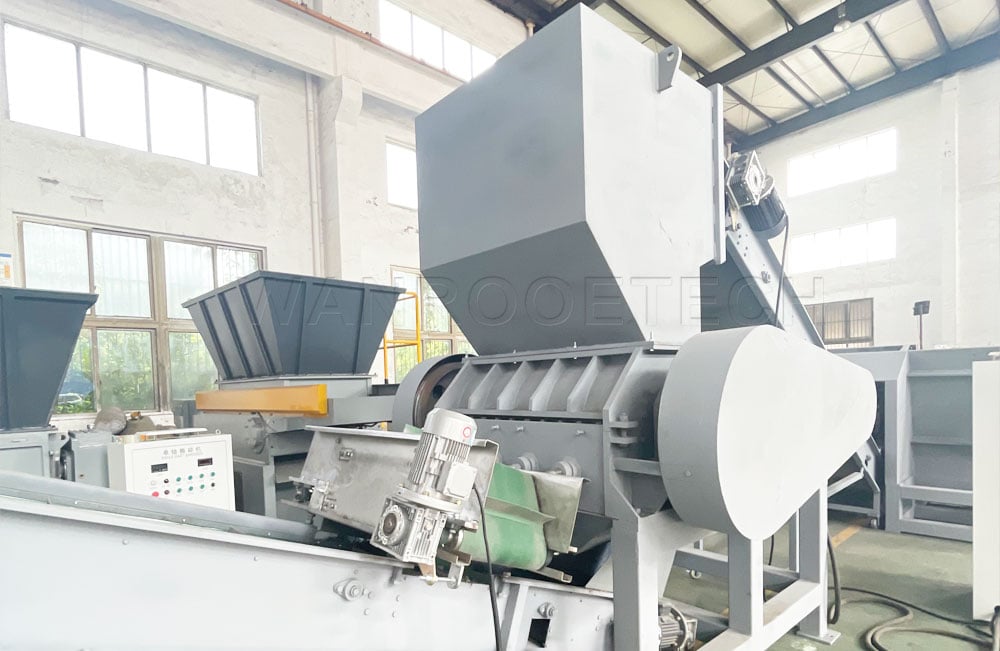

Steel Wire Reinforced HDPE Composite Pipe Recycling Crusher

crusher

Features of steel wire reinforced HDPE composite pipe recycling machine

1. The whole SRTP pipe can be shredded, whether 3 meters, 6 meters, or 9 meters, and can be put directly into it, without cutting off, reducing labor, to ensure the safety of
safe production.
2. The crusher blade selection of special tool steel H13, steel wire/steel strip shear has high strength toughness, not easy to damage the blade, thus reducing the loss.
3. The choice of two magnetic separations, steel wire and crushed material separation rate can reach 99%.



Steel wire reinforced HDPE composite pipe recycling machine Parameter:

ModelSWPR-250SWPR-400
Capacity(kg/h)400700-800
SRTP pipe diameter(mm)<250mm<400mm
Power(kw)102138
Weight(kg)990011900


In the WANROOETECH product range, we offer various steel wire reinforced HDPE composite pipe recycling solutions to meet your specific need. Contact us to tailor an optimal steel wire reinforced HDPE composite pipe size reduction solution for your project.


In order to better provide you with a professional answer, when sending an inquiry, please describe your parameters or technical requirements (such as processing materials, output size, capacity, etc.), we will reply to you as soon as possible!
