Industrial Lab plastic mixer of the range can be manufactured in small size for laboratory tests. WANROOETECH laboratory mixers are supplied on their own or combined with the cooler. The laboratory mixer is suitable for PVC dry blend, powder coatings, masterbatch and pigments, thermoplastic rubbers, wood-plastic composites and offers high reproducibility of the process environment on the production plants in order to provide essential data to improve productivity and quality. lab mixer is available from a minimum capacity of 5 liters to a maximum capacity of 100 liters.
5-100L Lab High Speed Plastic PVC Compounding Mixer Description:
Industrial Lab plastic mixer of the range can be manufactured in small size for laboratory tests.
WANROOETECH laboratory mixers are supplied on their own or combined with the cooler.
The laboratory mixer is suitable for PVC dry blend, powder coatings, masterbatch and pigments, thermoplastic rubbers, wood-plastic composites and offers high reproducibility of the process environment on the production plants in order to provide essential data to improve productivity and quality.
lab mixer is available from a minimum capacity of 5 liters to a maximum capacity of 100 liters.
5-100L Lab High Speed Plastic PVC Compounding Mixer Applications:
1. Blending Master Batch with the virgin granules.
2. Mixing Pigments or Pigment Paste with granules or polymers powder.
3. Blending Pigment and Fillers additives.

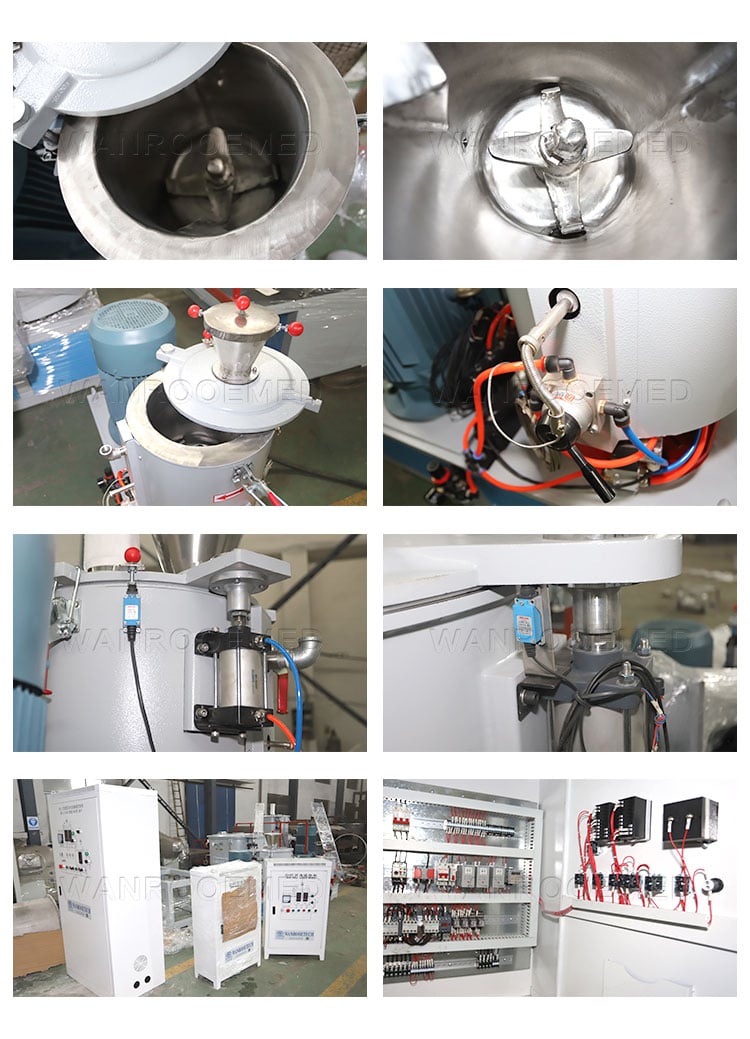

5-100L Lab High Speed Plastic PVC Compounding Mixer Features:
1. A complete range of fully automatic high-speed mixer units for the production of both rigid and plasticized PVC dry blends.
2. The compact unit is monoblock construction.
3. A unique mixing impeller using aerodynamic principles gives a rigid mixing action and fast frictional heating.
4. Inner stainless steel and conduction oil jacket to attain equilibrium temperature.
5. The impeller is made of stainless steel and passed the strictly Static and dynamic balance experiments.
6. The discharging mode adopts temperature-automatic control and manual control.
7. The technique of two layers of sealing a adopted in its pot cover. It has self-friction heating and electric heating modes.
Type | SHR-5A | SHR-10A | SHR-25A | SHR-50A | SHR-100A |
Total capacity | 5L | 10L | 25L | 50L | 100L |
Effective capacity | 3L | 7L | 17L | 35L | 75L |
Motor power | 1.1Kw | 3Kw | 5.5Kw | 7/11Kw | 14/22Kw |
Heating power | - | - | - | 3kw | 6kw |
Speed | 1440rpm | 1440rpm | 1440rpm | 750/1500rpm | 650/1300rpm |
Heating method | Self-friction | Self-friction | Self-friction | Electricity heating | Electricity heating |
Material discharging | By hand | By hand | By hand | Pneumatic | Pneumatic |
Dimension | 620x300x730 | 1200x300x830 | 1200x350x850 | 2100x700x1100 | 2100x800x1500 |
