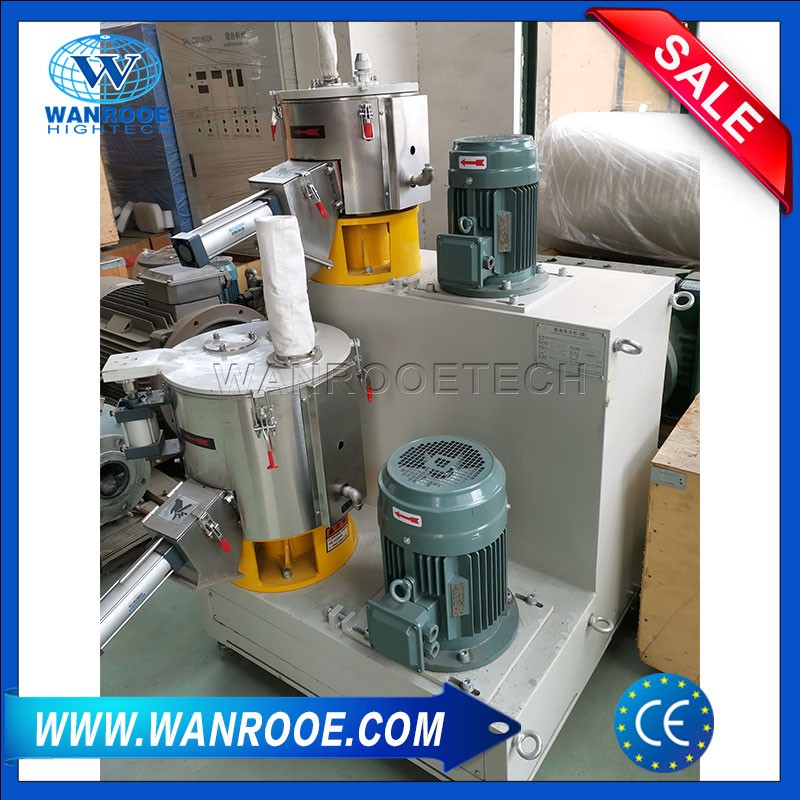

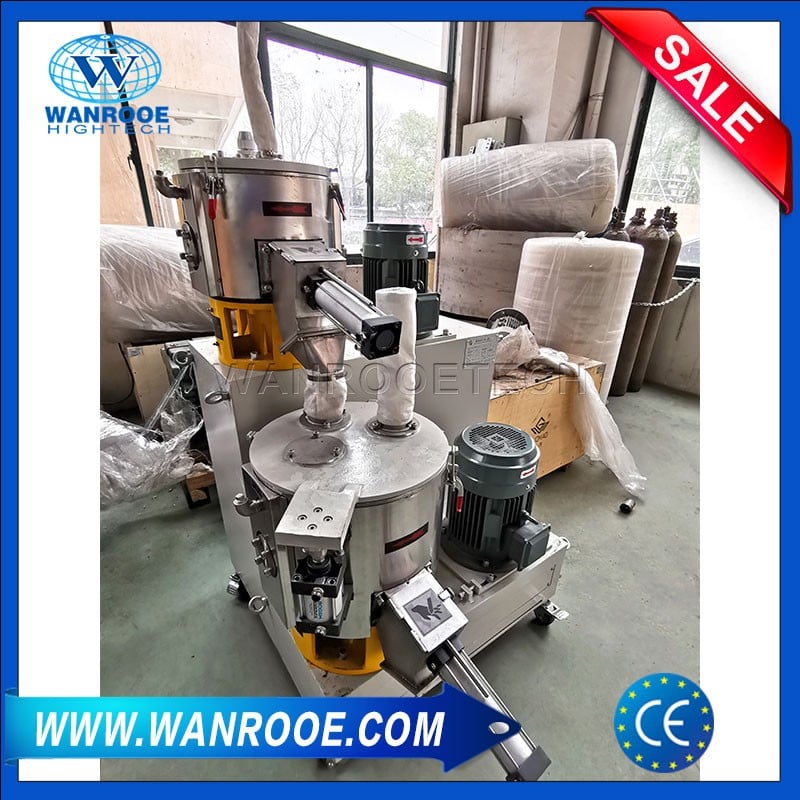

PVC High Speed Heater Cooler Laboratory Mixer Machine PVC High Speed Heater Cooler Laboratory Mixer Machine

Industrial Lab plastic mixer of the range can be manufactured in small size for laboratory tests. WANROOETECH laboratory mixers are supplied on their own or combined with the cooler. The laboratory mixer is suitable for PVC dry blend, powder coatings, masterbatch and pigments, thermoplastic rubbers, wood-plastic composites and offers high reproducibility of the process environment on the production plants in order to provide essential data to improve productivity and quality. lab mixer is available from a minimum capacity of 5 liters to a maximum capacity of 100 liters.

Quantity:
Share this:
  • Product Description
  • Parameter
  • Video

PVC High Speed Heater Cooler Laboratory Mixer Machine Description:
PVC high speed heater cooler laboratory mixer machine is applicable for mixing, coloring and drying various resins such as poly, PE, PP, PVC polypropylene, poly chloride, etc, and in the process of drying and volatilization of engineering plastics such as ABS PC, etc before forming and processing as well as in the mixing of phenolic resin.

PVC high speed heater cooler laboratory mixer machine of the range can be manufactured in small size for laboratory tests.

The PVC high speed heater cooler laboratory mixer machine combines heat mixing and cool mixing together. The materials after heat mixing can be getting into the cool mixer for cooling automatically, exhausts the remaining gass and avoid agglomerates.

PVC high speed heater cooler laboratory mixer machine is the ideal equipment for plastic mixing.



PVC High Speed Heater Cooler Laboratory Mixer Machine Features:
The PVC high speed heater cooler laboratory mixer machine is developed by introducing and absorbing the advanced technology, and the mixture adopts the negative pressure mixing principle. Electrical instrumentation all adopt imported brand-name electrical appliances and can adopt PLC program control or computer control. It has a high degree of automation, fast mixing speed can be controlled by frequency conversion, its paddle is precision stainless steel pressure casting, and through the static and dynamic balance test. Especially the cooling machine paddle adopts foreign advanced spiral stirring structure, the whole container has no dead angle, with fast cooling speed, clean discharge, and mixing effect has reached foreign advanced level.


1. The container lid and the container between the use of concave and convex double channel sealing method, compared with the traditional single channel flat seal, the sealing effect is better.
2. The spindle seal is a three-layer skeleton oil seal made of imported durable rubber with an oil injection device, which has a good sealing effect and long service life.
3. The discharge valve adopts a plunger-type material door plug. The inner surface of the door plug fits tightly with the inner wall of the container so that there is no dead zone for mixing, and the material is mixed evenly. The material door plug adopts the end seal method, the seal is reliable. The temperature measuring point is located in the container, which is in direct contact with the material, so the temperature measurement is accurate. The paddle of the cold machine adopts a large inclination paddle, forcing the material to rise along the inner wall of the container, and then back down through the cooling jacket to achieve the purpose of cooling.
4. The wall of the container is equipped with a cooling sandwich, and the cooling sandwich adopts a spiral waterway to make the cooling water flow according to the set route. Uniform cooling, fast cooling speed and good cooling effect. The container is equipped with an inverted cone-shaped inner cooling jacket, which increases the cooling area and speeds up the cooling speed.
5. The cold machine introduces foreign deceleration technology to adopt direct deceleration device, which overcomes all the shortcomings of using decelerator and makes its operation more stable. The lid of the container of the cold machine is equipped with an exhaust device, which fully excludes the gas generated by the hot mix in the cooling process and improves the quality of the products.
6. The inner wall of the container of this unit is made of stainless steel plate, which increases the service life of the equipment.
7. The electrical control system is temperature and time double control, and other components are made of products of famous enterprises to make its performance reliable and more sensitive to ensure the performance of the whole machine.




High Speed Plastic Mixer Unit Detail:

I, High-speed mixer
1, Qty: 1
2, Model: SHR-10A
1) Stirring tank
A, total capacity: 10L, effective volume: 10L, one time feeding amount: ≤3Kg
B, Shape: disc bottom
C, Inner barrel: SUS304, δ=4mm, 250# polishing
D, Outer barrel: Q235-A production, δ=4mm
E, Barrel top ring flange: SUS304, δ=20mm, 250# polishing
F, Bottom plate: Q235-A production, δ=12mm
G, The interlayer can pass the heat transfer oil, pressure: ≤0.1MPa
H, Heater power 1.5kw
2) Stirring wing
A, Material: SUS304 production, 250# polishing
B, Stirring wing rotation speed: 30~1300rpm
C. Stirring wing structure: consists of three sections: upper, middle and lower
Making by SUS304
3) Bucket cover and lifting parts
A. Bucket cover material: made of stainless steel, inner surface 250# polished.
B. Lifting control: an openable lid can be set in the stirring tank, and the lid can be opened by manual movement in the horizontal direction.
C. Seal: The sealing part of the cover is sealed with two white silicone rubber
D. There are feeding port and exhaust port on the lid of the barrel
4) Base
A. Construction: fixed agitation tank and motor, and equipped with belt tensioning device
B, panel material: Q235-A production, δ=16mm
C, pot holder material: HT200 production
D, frame material: Q235-A production
5) Discharge port device
A, material: stainless steel, inner surface 250# polished
B. Structure: The discharge cylinder can be installed to ensure that the discharge valve is opened in one line, leaving observation holes and blow holes.
C, unloading shell material: stainless steel
D, discharge valve material: SUS304 production
6) Motor
A, model: YVP200L-4V1 inverter motor
B, power: 3Kw
C, speed: 1480rpm
7) Shaft seal parts
A, oil seal + labyrinth seal
B, oil seal is made of natural rubber
C. Air is blown from the labyrinth seal into the agitation tank. This design prevents the possibility of the product entering the shaft seal.
8) Safety device
A. There is a contact switch on the cover of the main unit. This safety design ensures that the stirring wing can be rotated after the cover is closed.


II The cooling mixer
1, Qty: 1
2, model: SHL-Z25A
1) Stirring tank
A, total capacity: 25L, effective volume: 18.75L, one feeding amount: 7.5Kg
B, shape: straight bottom
C, inner barrel: SUS304, δ=4mm, 250# polishing
D, outer barrel: Q235-A production, δ=4mm
E, barrel top ring flange: SUS304 production, δ = 16mm, 250 # polished
The inner barrel and the outer barrel interlayer can be cooled by the cooling water (water pressure: 9-15 ° C ≤ 0.1 Mpa).
2) Stirring wing
A, material: SUS304 production, 250# polishing
B, stirring wing speed: 30~1300rpm
C. Stirring wing structure: consists of three sections: sizing, middle and lower
Making SUS304
Medium pulp leaf SUS304 production
Production of lower blade SUS304
3) Bucket cover and lifting parts
A. Bucket cover material: made of stainless steel, inner surface 250# polished.
B. Lifting control: an openable lid can be set in the stirring tank, and the lid can be opened by manual movement in the horizontal direction.
C. Seal: The sealing part of the cover is sealed with two white silicone rubber
D. There are feeding port and exhaust port on the lid of the barrel
4) Base
A. Construction: fixed agitation tank and motor, and equipped with belt tensioning device
B, panel material: Q235-A production, δ=16mm
C, pot holder material: HT200 production
D, frame material: Q235-A production
5) Discharge port device
A, material: stainless steel, 250# polishing
B. Structure: The discharge cylinder can be installed to ensure that the discharge valve is opened in one line, leaving observation holes and blow holes.
C, unloading shell material: stainless steel
D, discharge valve material: SUS304 production
6) Reducer, motor
A, reducer model: KAF87-Y4-4P-14.45
B, spiral bevel gear reducer
C, power: 4Kw
7) Shaft seal parts
A, oil seal + labyrinth seal
B, oil seal is made of natural rubber
C. Air is blown from the labyrinth seal into the agitation tank. This design prevents the possibility of the product entering the shaft seal.
8) Safety device
A. There is a contact switch on the cover of the main unit. This safety design ensures that the stirring wing can be rotated after the cover is closed.


III, the electrical control part
A. The main electrical components are Siemens (Suzhou), and the temperature control table is RKC. Electric control cabinet adopts simple dust proof.
B, discharge time or temperature control
C, the inverter selects Zhongchen brand
D, hot mixing machine SHR-10A position between the two blades to install the temperature thermocouple (the thermocouple with PTFE jacket to ensure measurement accuracy.


ModelSRL-Z10/25A
High Speed Mixer ModelSHR-10A
Total Capacity10L
Effective Volume10L
One Time Feeding Amount≤3Kg
Stirring Wing Rotation Speed30~1300rpm
Motor Power3kw
Cooling Mixer ModelSHL-Z25A
Total Capacity25L
Effective Volume18.75L
One Feeding Amount7.5Kg
Motor Power4kw
Stirring Wing Rotation Speed30~1300rpm
×
